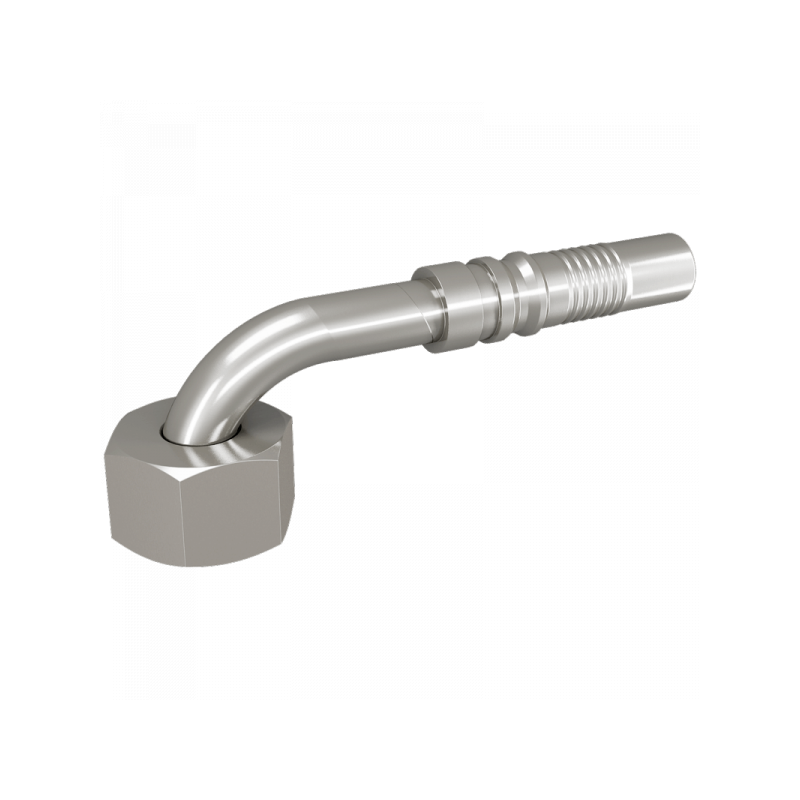

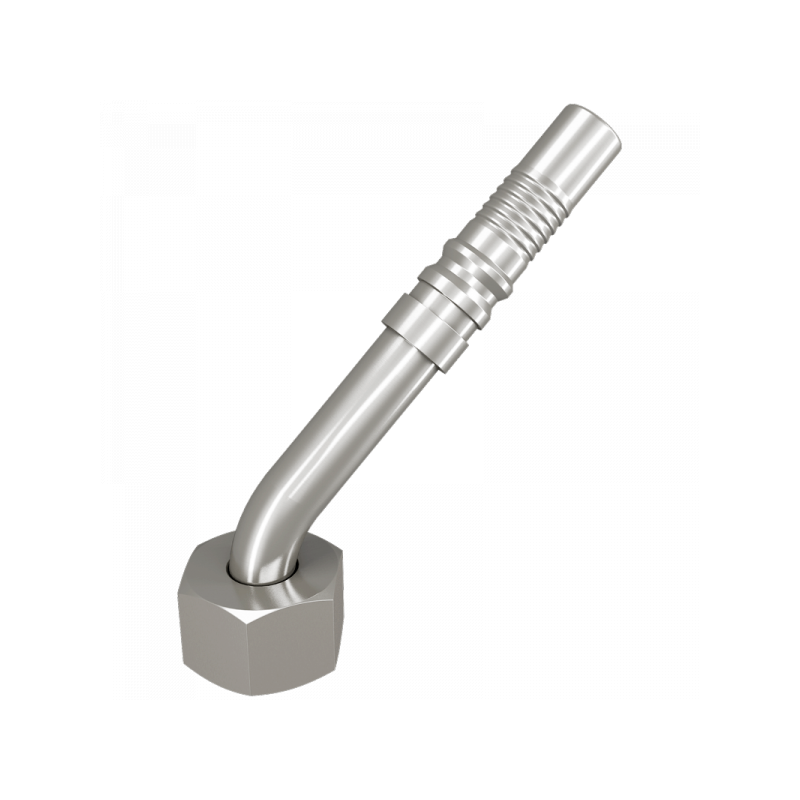

DKOS-4SH:

A B / mm DN L1 / mm L2 / mm S1 C / mm Material Art.Nr. PDF
M30x2 19,7 20 90,3 28,8 36 14,0 1.4571 8200DN20M30
M36x2 19,7 20 93 31,5 46 14,0 1.4571 8200DN20M36
M36x2 26 25 107,7 34,7 46 20,0 1.4571 8200DN25M36
M42x2 26 25 113 57 50 20,0 1.4571 8200DN25M42
M52x2 32,2 32 133,5 66,5 60 24,0 1.4571 8200DN32M52
M52x2 38,7 40 123,5 51,5 60 28,0 1.4571 8200DN40M52
M68x2 51,6 50 150 80 80 40,0 1.4571 8200DN50M68
