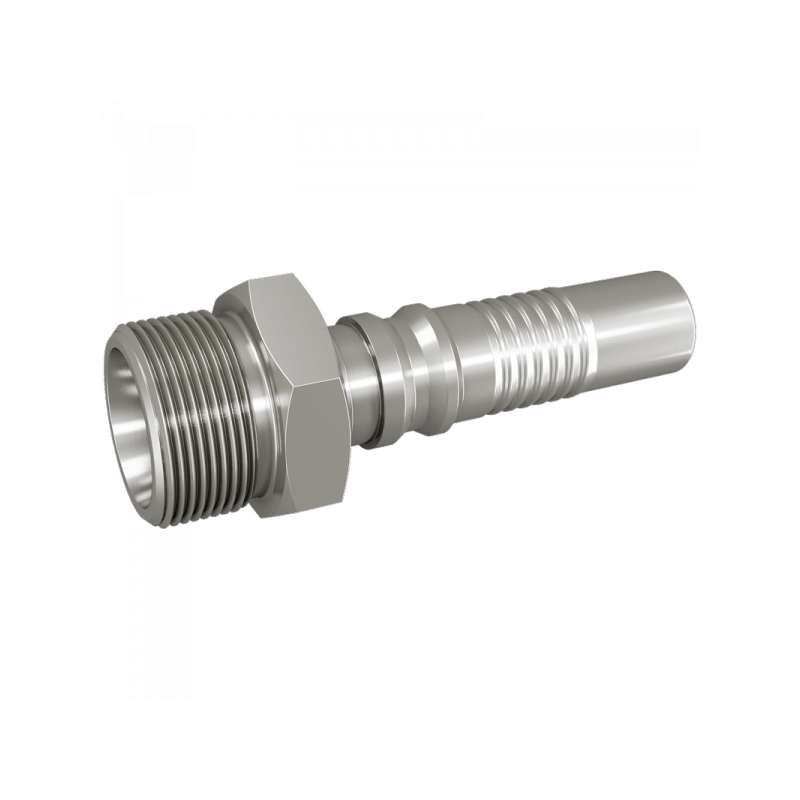

CES-4SH:
| A | B / mm | DN | L1 / mm | L2 / mm | S1 | C / mm | Material | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|---|
| M36x2 | 19,7 | 20 | 100 | 53 | 41 | 14,0 | 1.4571 | 8400DN20 | |
| M42x2 | 26 | 25 | 115 | 59 | 46 | 18,0 | 1.4571 | 8400DN25 | |
| M52x2 | 32,2 | 32 | 132,5 | 44,5 | 55 | 24,0 | 1.4571 | 8400DN32 |
Related articles

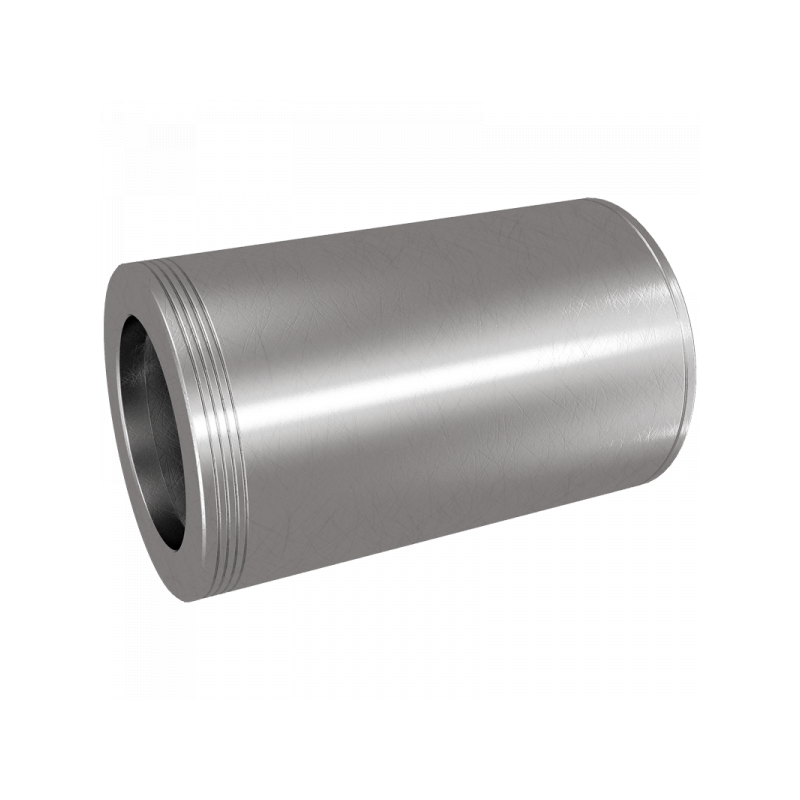

8000
DKOS-4SH

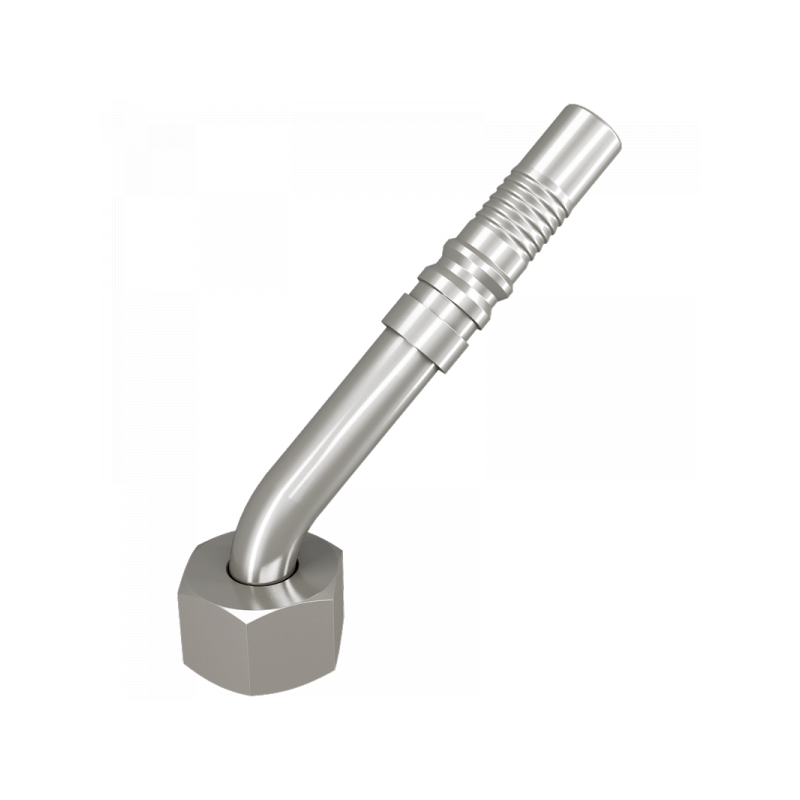

DKOS-4SH-45°
