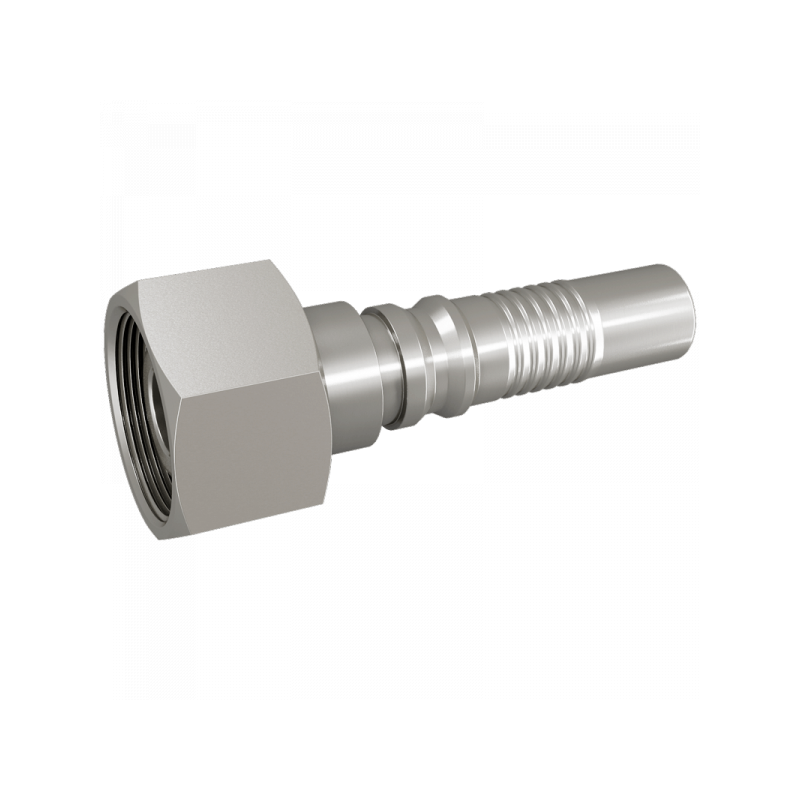

DKOS-4SH:
| A | B / mm | DN | L1 / mm | L2 / mm | S1 | C / mm | Material | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|---|
| M30x2 | 19,7 | 20 | 90,3 | 28,8 | 36 | 14,0 | 1.4571 | 8200DN20M30 | |
| M36x2 | 19,7 | 20 | 93 | 31,5 | 46 | 14,0 | 1.4571 | 8200DN20M36 | |
| M36x2 | 26 | 25 | 107,7 | 34,7 | 46 | 20,0 | 1.4571 | 8200DN25M36 | |
| M42x2 | 26 | 25 | 113 | 57 | 50 | 20,0 | 1.4571 | 8200DN25M42 | |
| M52x2 | 32,2 | 32 | 133,5 | 66,5 | 60 | 24,0 | 1.4571 | 8200DN32M52 | |
| M52x2 | 38,7 | 40 | 123,5 | 51,5 | 60 | 28,0 | 1.4571 | 8200DN40M52 | |
| M68x2 | 51,6 | 50 | 150 | 80 | 80 | 40,0 | 1.4571 | 8200DN50M68 |
