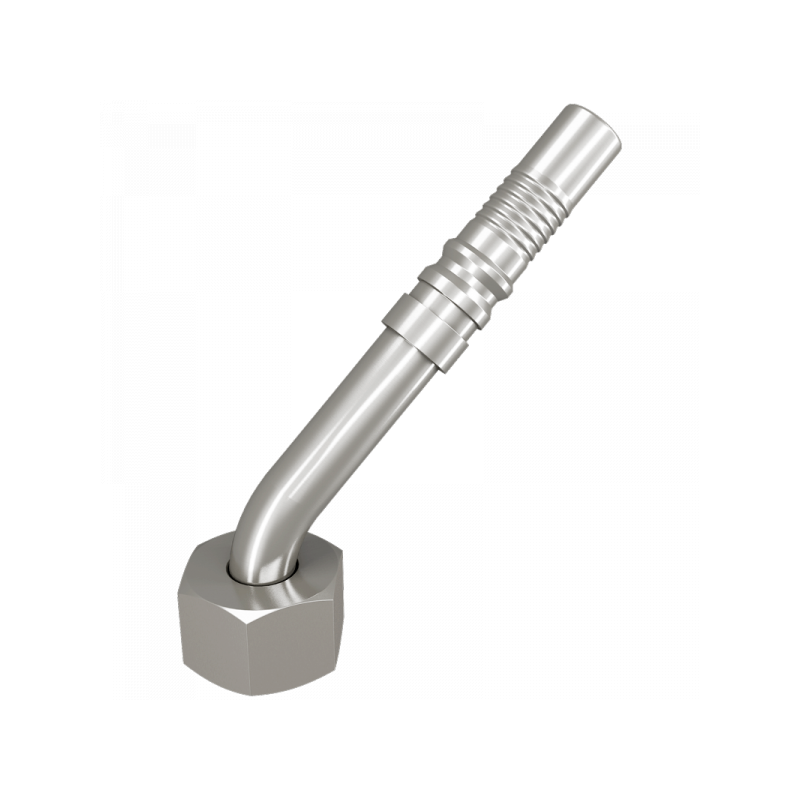

DKOS-4SH-45°:
| A | B / mm | DN | L1 / mm | L2 / mm | L3 / mm | S1 | C / mm | Material | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|---|---|
| M36x2 | 19,7 | 20 | 173,5 | 126,5 | 36,5 | 46 | 14,0 | 1.4571 | 8201DN20M36 | |
| M42x2 | 26 | 25 | 157,7 | 84,7 | 38,0 | 50 | 20,0 | 1.4571 | 8201DN25M42 | |
| M52x2 | 32,2 | 32 | 230 | 163 | 41,5 | 60 | 24,0 | 1.4571 | 8201DN32M52 | |
| M52x2 | 38,7 | 40 | 260 | 188 | 46,0 | 60 | 30,0 | 1.4571 | 8201DN40M52 |
