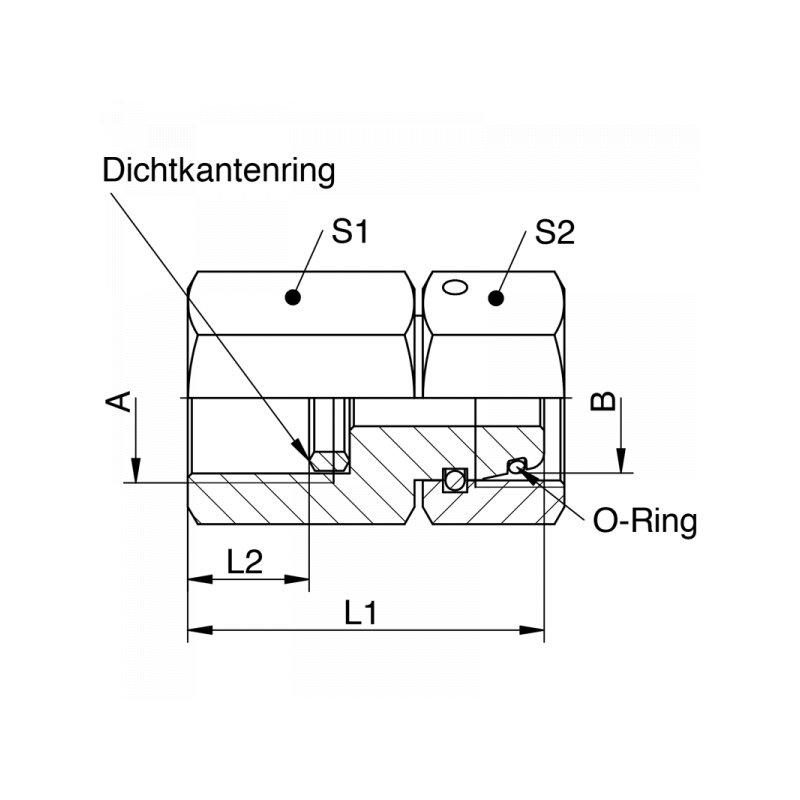

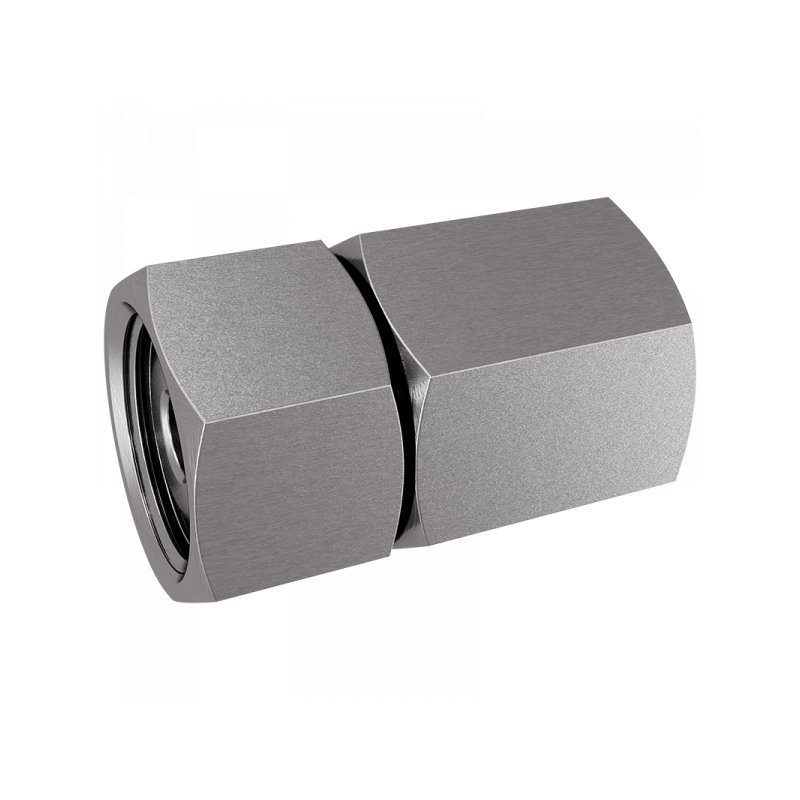

MAVD-L/S:
| A | B | PN / Bar | L1 / mm | L2 / mm | S1 | S2 | Material | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|---|
| G1/4 | 06 | 315 | 33,5 | 10 | 19 | 14 | 1.4571 | MAVD06L02 | |
| G1/2 | 06 | 315 | 43 | 15 | 27 | 14 | 1.4571 | MAVD06L04 | |
| G1/4 | 08 | 315 | 34,5 | 10 | 19 | 17 | 1.4571 | MAVD08L02 | |
| G1/2 | 08 | 315 | 43 | 15 | 27 | 17 | 1.4571 | MAVD08L04 | |
| G1/4 | 10 | 315 | 35 | 10 | 19 | 19 | 1.4571 | MAVD10L02 | |
| G1/2 | 10 | 315 | 43 | 15 | 27 | 19 | 1.4571 | MAVD10L04 | |
| G1/4 | 12 | 315 | 35 | 10 | 19 | 22 | 1.4571 | MAVD12L02 | |
| G1/2 | 12 | 315 | 43 | 15 | 27 | 22 | 1.4571 | MAVD12L04 | |
| G1/2 | 06 | 630 | 42 | 15 | 27 | 17 | 1.4571 | MAVD06S04 | |
| G1/2 | 08 | 630 | 42 | 15 | 27 | 19 | 1.4571 | MAVD08S04 | |
| G1/2 | 10 | 630 | 42 | 15 | 27 | 22 | 1.4571 | MAVD10S04 | |
| G1/2 | 12 | 630 | 43,5 | 15 | 27 | 24 | 1.4571 | MAVD12S04 |
