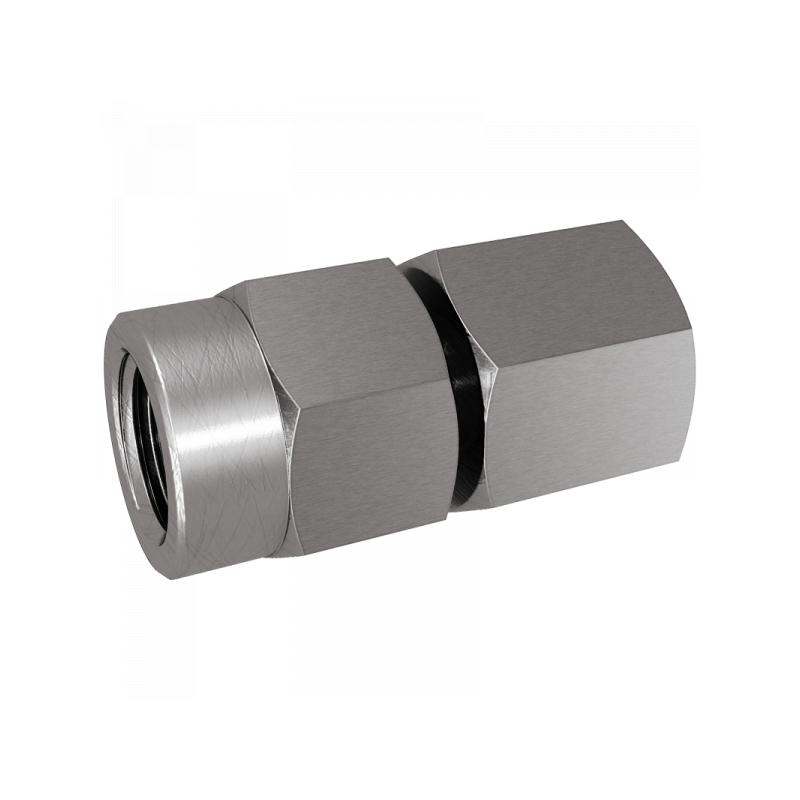

MAVEV-L/S:

A B PN / Bar L1 / mm L2 / mm S1 S2 Material Art.Nr. PDF
G1/4 06 315 38 10 19 14 1.4571 MAVEV06L02
G1/4 08 315 38 10 19 17 1.4571 MAVEV08L02
G1/4 10 315 40 10 19 19 1.4571 MAVEV10L02
G1/2 10 315 48 15 27 19 1.4571 MAVEV10L04
G1/4 12 315 41 10 19 22 1.4571 MAVEV12L02
G1/2 12 315 48 15 27 22 1.4571 MAVEV12L04
G1/2 06 630 45 15 27 17 1.4571 MAVEV06S04
G1/2 08 630 45 15 27 19 1.4571 MAVEV08S04
G1/2 10 630 48 15 27 22 1.4571 MAVEV10S04
G1/2 12 630 48 15 27 24 1.4571 MAVEV12S04
