Cutting ring fittings

Gauge couplings

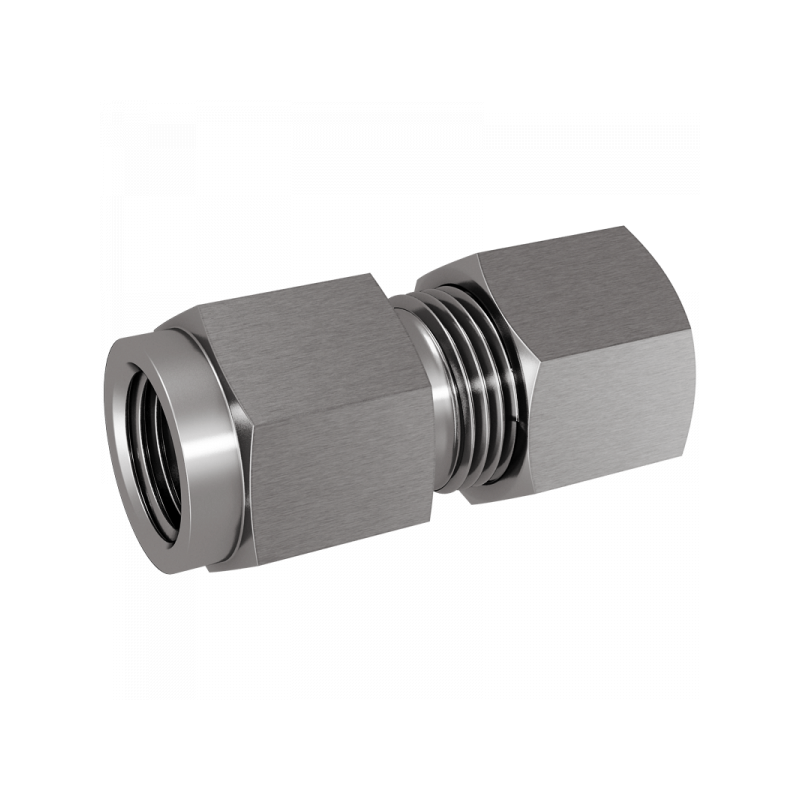

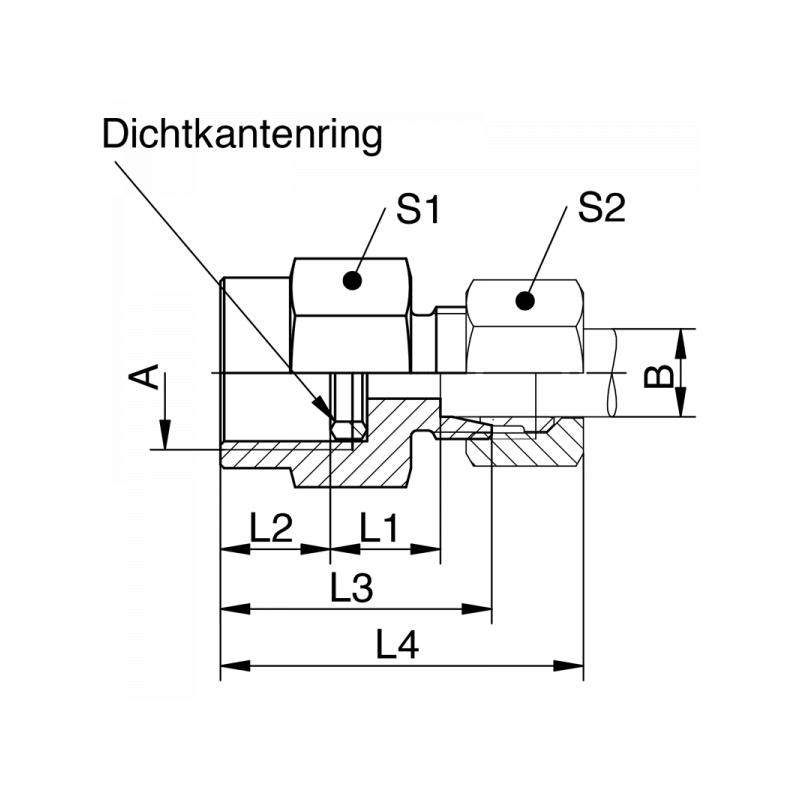

A	B	PN / Bar	L1 / mm	L2 / mm	L3 / mm	L4 / mm	S1	S2	Material	Art.Nr.	Stutzen
G1/4	06	315	12	10	29	39	19	14	1.4571	MAV06L02	XMAV06L02
G1/2	06	315	16	15	38	48	27	14	1.4571	MAV06L04	XMAV06L04
G1/4	08	315	12	10	29	39	19	17	1.4571	MAV08L02	XMAV08L02
G1/2	08	315	16	15	38	48	27	17	1.4571	MAV08L04	XMAV08L04
G1/4	10	315	13	10	30	41	19	19	1.4571	MAV10L02	XMAV10L02
G1/2	10	315	16	15	38	49	27	19	1.4571	MAV10L04	XMAV10L04
G1/4	12	315	13	10	30	41	19	22	1.4571	MAV12L02	XMAV12L02
G1/2	12	315	16	15	38	49	27	22	1.4571	MAV12L04	XMAV12L04
G1/2	06	630	16	15	38	48	27	17	1.4571	MAV06S04	XMAV06S04
G1/2	08	630	16	15	38	48	27	19	1.4571	MAV08S04	XMAV08S04
G1/2	10	630	15,5	15	38	49	27	22	1.4571	MAV10S04	XMAV10S04
G1/2	12	630	15,5	15	38	49	27	24	1.4571	MAV12S04	XMAV12S04
