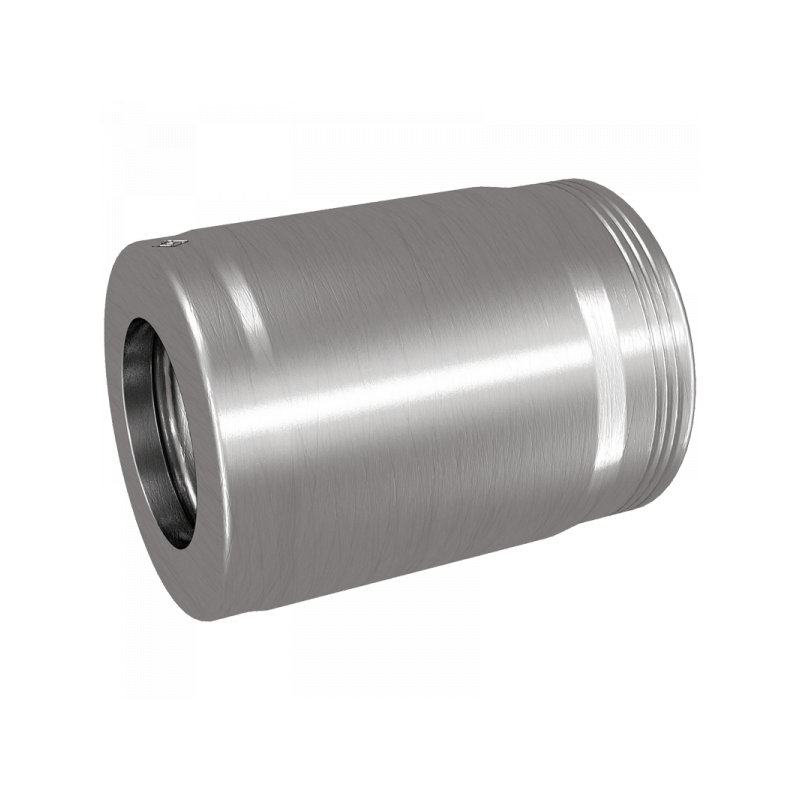

4030:

A / mm B / mm DN L1 / mm L2 / mm C / mm Material Art.Nr. PDF
10,2 22 6 34 2,5 15,5 1.4571 4030DN06
12,1 23 8 31 2,5 17,2 1.4571 4030DN08
14,2 26 10 38 2,5 19,5 1.4571 4030DN10
18,5 30 12 40 2,5 22,2 1.4571 4030DN12
21,6 33,6 16 40 2,5 26,4 1.4571 4030DN16
24,6 39 20 50 3 30,2 1.4571 4030DN20
30,9 45,5 25 60 3,7 37,3 1.4571 4030DN25
38,8 58 32 70 4 46,8 1.4571 4030DN32
44,2 65 40 73 4,3 53,7 1.4571 4030DN40
57,3 78 50 80 4,3 66,6 1.4571 4030DN50

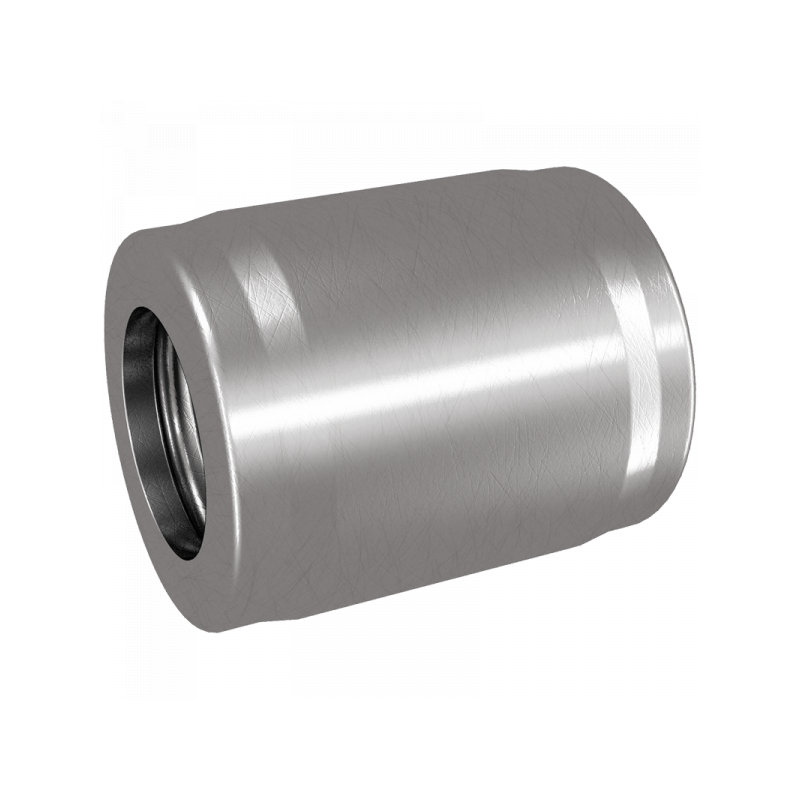

Related articles
