4040:

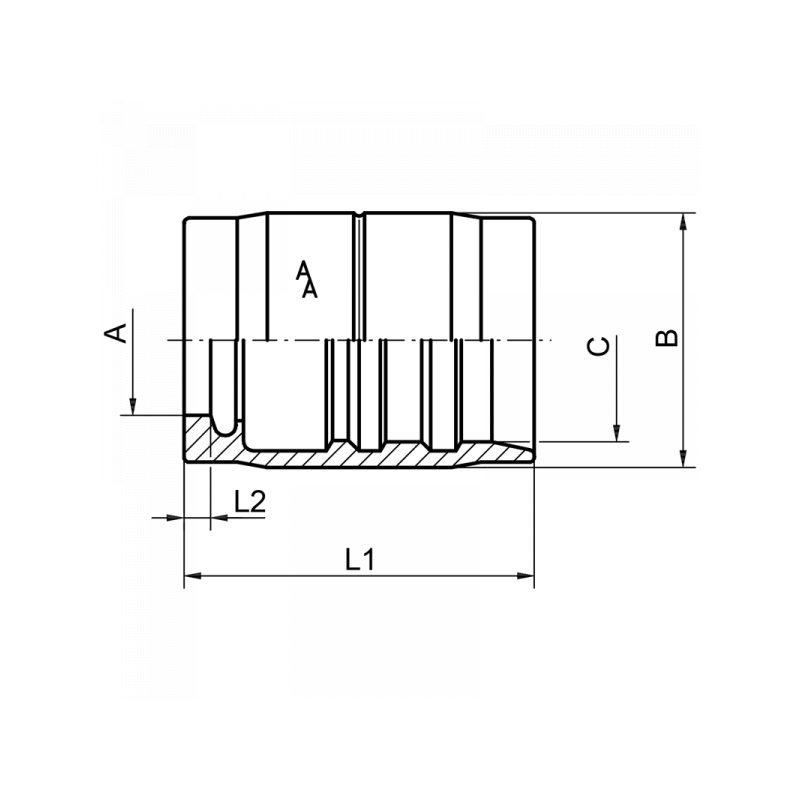

A / mm B / mm DN L1 / mm L2 / mm C / mm Material Art.Nr. PDF
13,0 22,3 8 31 2,5 17,2 1.4571 4040DN08
14,2 24 10 33 2,5 19,2 1.4571 4040DN10
17,8 28 12 36 2,5 23,0 1.4571 4040DN12
21,8 33 16 38 2,5 26,9 1.4571 4040DN16
24,6 36 20 44 3 29,9 1.4571 4040DN20
30,8 43 25 52 3,7 37,2 1.4571 4040DN25
37,7 49 32 60 4 43,5 1.4571 4040DN32
