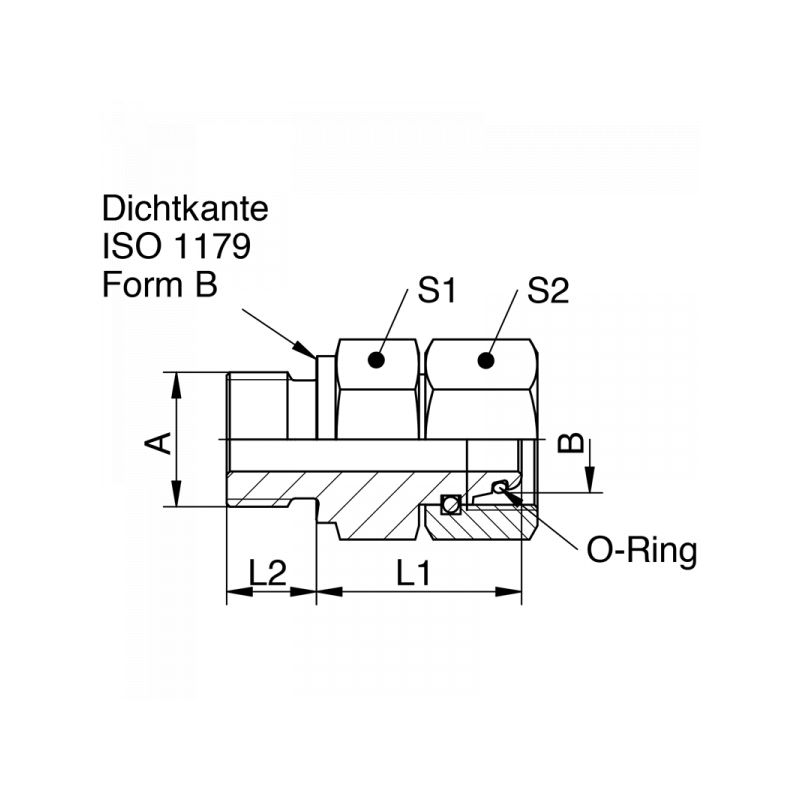

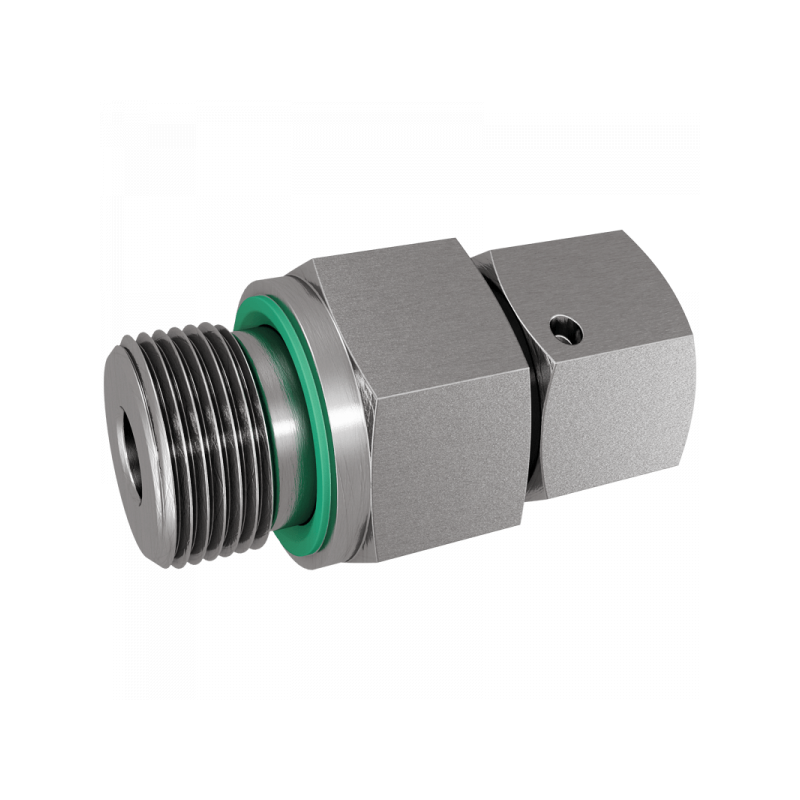

EVGED-LR/SR:

A B PN / Bar L1 / mm L2 / mm S1 S2 Material Art.Nr. PDF
G1/8 06 315 22,5 8 14 14 1.4571 EVGED06L01
G1/4 06 315 27 12 19 14 1.4571 EVGED06L02
G1/4 08 315 28,5 12 19 17 1.4571 EVGED08L02
G3/8 08 315 30 12 22 17 1.4571 EVGED08L03
G1/4 10 315 26,5 12 19 19 1.4571 EVGED10L02
G3/8 10 315 28 12 22 19 1.4571 EVGED10L03
G1/2 10 315 28 14 27 19 1.4571 EVGED10L04
G1/4 12 315 26,5 12 19 22 1.4571 EVGED12L02
G3/8 12 315 33 12 22 22 1.4571 EVGED12L03
G1/2 12 315 28,5 14 27 22 1.4571 EVGED12L04
G3/8 15 315 29 12 22 27 1.4571 EVGED15L03
G1/2 15 315 31 14 27 27 1.4571 EVGED15L04
G1/2 18 315 30,5 14 27 32 1.4571 EVGED18L04
G3/4 22 160 31,5 16 32 36 1.4571 EVGED22L06
G1 28 160 34 18 41 41 1.4571 EVGED28L08
G1 1/4 35 160 41 20 50 50 1.4571 EVGED35L10
G1 1/2 42 160 44,5 22 55 60 1.4571 EVGED42L12
G1/4 06 630 27 12 19 17 1.4571 EVGED06S02
G3/8 06 630 29 12 22 17 1.4571 EVGED06S03
G1/4 08 630 28,5 12 19 19 1.4571 EVGED08S02
G3/8 08 630 30 12 22 19 1.4571 EVGED08S03
G1/4 10 630 30,5 12 19 22 1.4571 EVGED10S02
G3/8 10 630 30,5 12 22 22 1.4571 EVGED10S03
G3/8 12 630 32,5 12 22 24 1.4571 EVGED12S03
G1/2 12 630 33,5 14 27 24 1.4571 EVGED12S04
G1/2 14 630 35 14 27 27 1.4571 EVGED14S04
G1/2 16 400 35,5 14 27 30 1.4571 EVGED16S04
G3/4 16 400 38 16 32 30 1.4571 EVGED16S06
G1/2 20 400 40 14 30 36 1.4571 EVGED20S04
G3/4 20 400 40 16 32 36 1.4571 EVGED20S06
G1 25 400 43,5 18 41 46 1.4571 EVGED25S08
G1 1/4 30 400 45 20 50 50 1.4571 EVGED30S10
G1 1/2 38 250 51,5 22 55 60 1.4571 EVGED38S12
