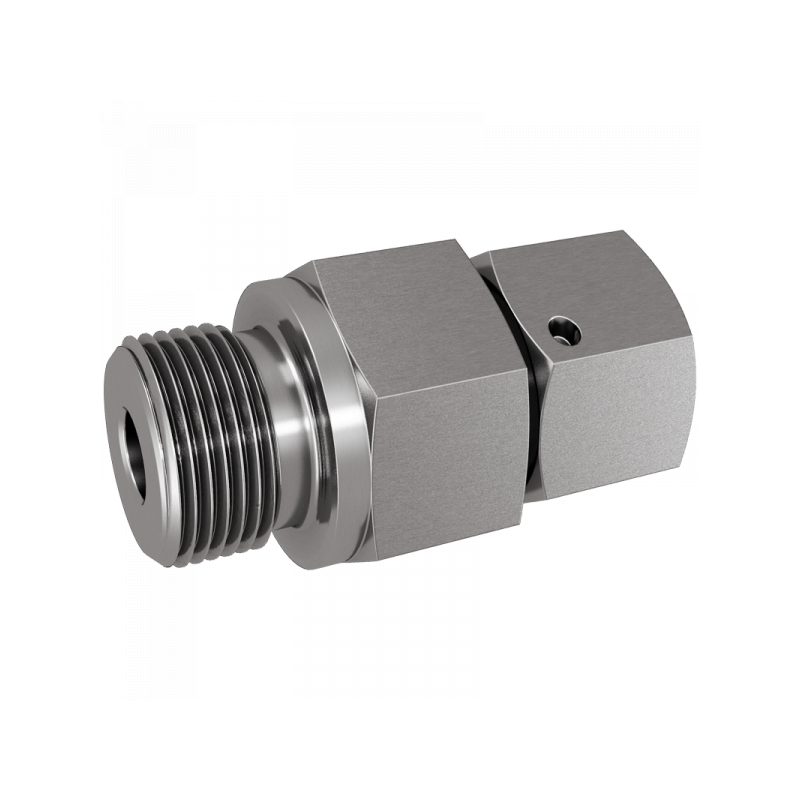

EVWD-L/S:

A PN / Bar L1 / mm L2 / mm L3 / mm L4 / mm S1 S2 Material Art.Nr. Stutzen PDF
06 315 12 19 29 24 12 14 1.4571 EVWD06L  EVWD06LDKVM
08 315 14 21 31 26 12 17 1.4571 EVWD08L  EVWD08LDKVM
10 315 15 22 33 28 14 19 1.4571 EVWD10L  EVWD10LDKVM
12 315 17 24 35 28,5 17 22 1.4571 EVWD12L  EVWD12LDKVM
15 315 21 28 39 31,5 19 27 1.4571 EVWD15L  EVWD15LDKVM
18 315 23,5 31 43 34,5 24 32 1.4571 EVWD18L  EVWD18LDKVM
22 160 27,5 35 47 37,5 27 36 1.4571 EVWD22L  EVWD22LDKVM
28 160 30,5 38 52 40,5 36 41 1.4571 EVWD28L  EVWD28LDKVM
35 160 34,5 45 61 49,5 41 50 1.4571 EVWD35L  EVWD35LDKVM
42 160 40 51 67 54 50 60 1.4571 EVWD42L  EVWD42LDKVM
06 630 16 23 33 27 12 17 1.4571 EVWD06S  EVWD06SDKVM
08 630 17 24 34 26,5 14 19 1.4571 EVWD08S  EVWD08SDKVM
10 630 17,5 25 37 28,5 17 22 1.4571 EVWD10S  EVWD10SDKVM
12 630 21,5 29 41 29,5 17 24 1.4571 EVWD12S  EVWD12SDKVM
14 630 22 30 42 33,5 19 27 1.4571 EVWD14S  EVWD14SDKVM
16 400 24,5 33 46 35 24 30 1.4571 EVWD16S  EVWD16SDKVM
20 400 26,5 37 52 41,5 27 36 1.4571 EVWD20S  EVWD20SDKVM
25 400 30 42 58 45,5 36 46 1.4571 EVWD25S  EVWD25SDKVM
30 400 35,5 49 65 49 41 50 1.4571 EVWD30S  EVWD30SDKVM
38 250 41 57 76 54,5 50 60 1.4571 EVWD38S  EVWD38SDKVM
