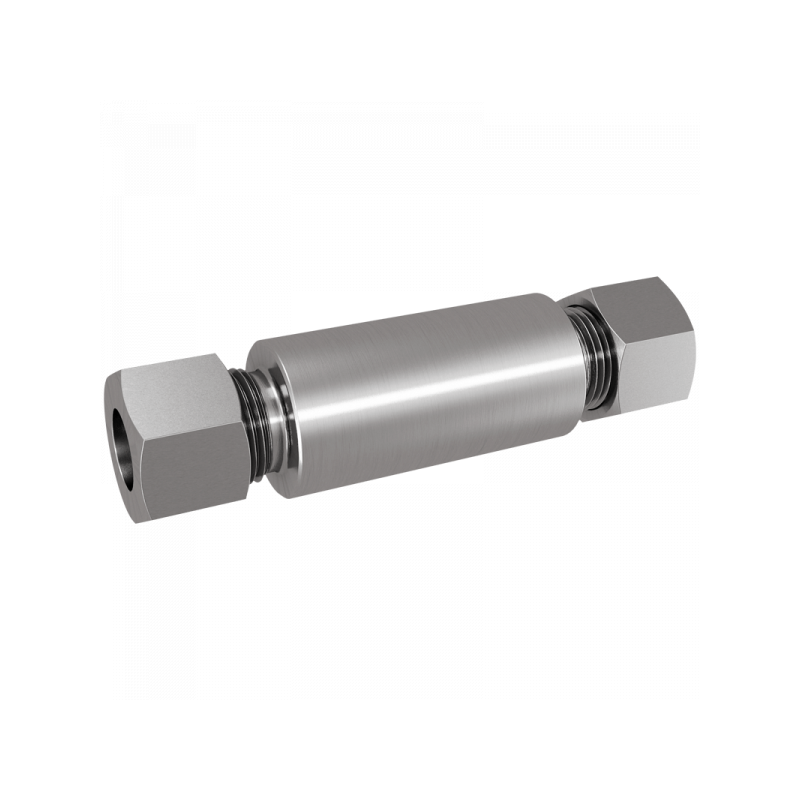

ESV-L/S:

A PN / Bar L1 / mm L2 / mm L3 / mm S1 D Material Art.Nr. Stutzen PDF
06 315 56 70 90 14 18 1.4571 ESV06L  XESV06L
08 315 56 70 90 17 20 1.4571 ESV08L  XESV08L
10 315 58 72 94 19 22 1.4571 ESV10L  XESV10L
12 315 58 72 94 22 25 1.4571 ESV12L  XESV12L
15 315 70 84 106 27 28 1.4571 ESV15L  XESV15L
18 315 69 84 108 32 32 1.4571 ESV18L  XESV18L
22 160 73 88 112 36 36 1.4571 ESV22L  XESV22L
28 160 73 88 116 41 40 1.4571 ESV28L  XESV28L
35 160 71 92 124 50 50 1.4571 ESV35L  XESV35L
42 160 70 92 124 60 60 1.4571 ESV42L  XESV42L
06 630 60 74 94 17 20 1.4571 ESV06S  XESV06S
08 630 60 74 94 19 22 1.4571 ESV08S  XESV08S
10 630 59 74 98 22 25 1.4571 ESV10S  XESV10S
12 630 59 74 98 24 28 1.4571 ESV12S  XESV12S
14 630 72 88 112 27 30 1.4571 ESV14S  XESV14S
16 400 71 88 114 30 35 1.4571 ESV16S  XESV16S
20 400 71 92 122 36 38 1.4571 ESV20S  XESV20S
25 400 72 96 128 46 45 1.4571 ESV25S  XESV25S
30 400 73 100 132 50 50 1.4571 ESV30S  XESV30S
38 250 72 104 142 60 60 1.4571 ESV38S  XESV38S
