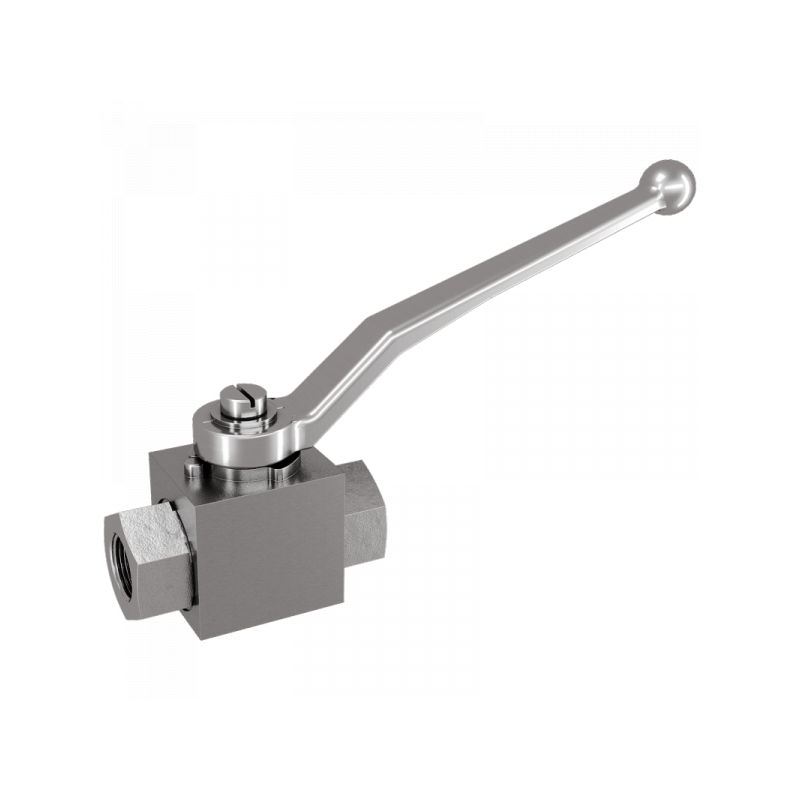

BKH:

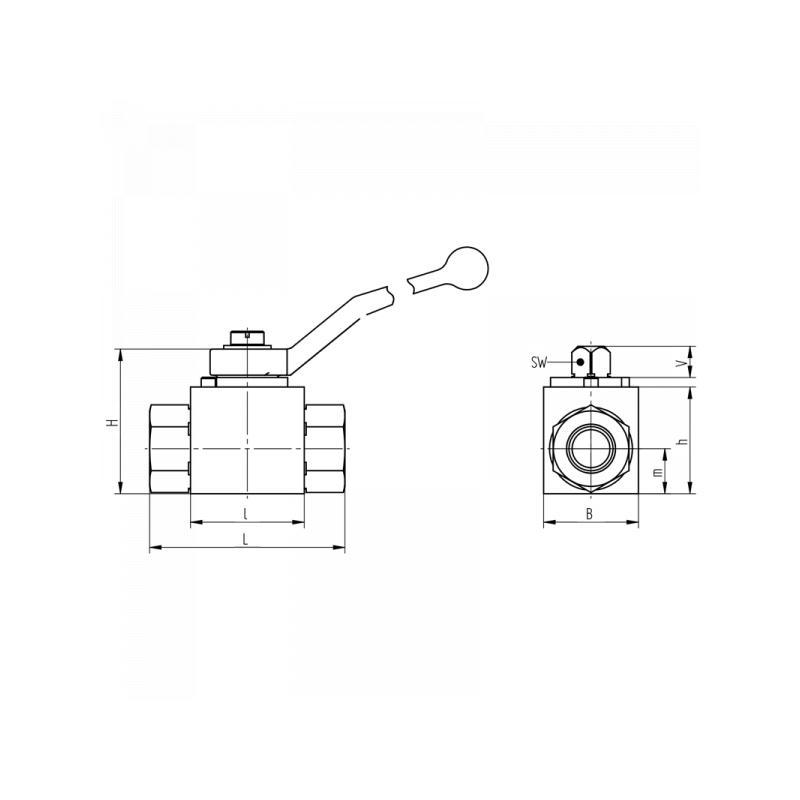

A B DN PN / Bar LW L1 H1 H2 M V SW L2 Material Art.Nr. PDF
G1/8 28 4 500 -20°C / +100°C 5 36 43,5 32 13 8 9 69 1.4571 BKH013
G1/4 28 6 500 -20°C / +100°C 6 36 43,5 32 13 8 9 70 1.4571 BKH023
G3/8 32 10 500 -20°C / +100°C 10 42 51,5 40 19 8 9 70 1.4571 BKH033
G1/2 45 16 400 -20°C / +100°C 16 48 60,5 45 19 11,5 12 83 1.4571 BKH043
G3/4 50 20 400 -20°C / +100°C 20 60 77,5 58 25 15 14 93 1.4571 BKH063
G1 60 25 350 -20°C / +100°C 25 67 84,5 65 29 15 14 113 1.4571 BKH083
G1 1/4 60 32 350 -20°C / +100°C 25 67 84,5 65 29 15 14 120 1.4571 BKH103
G1 1/2 60 40 350 -20°C / +100°C 25 67 84,5 65 29 15 14 130 1.4571 BKH123
