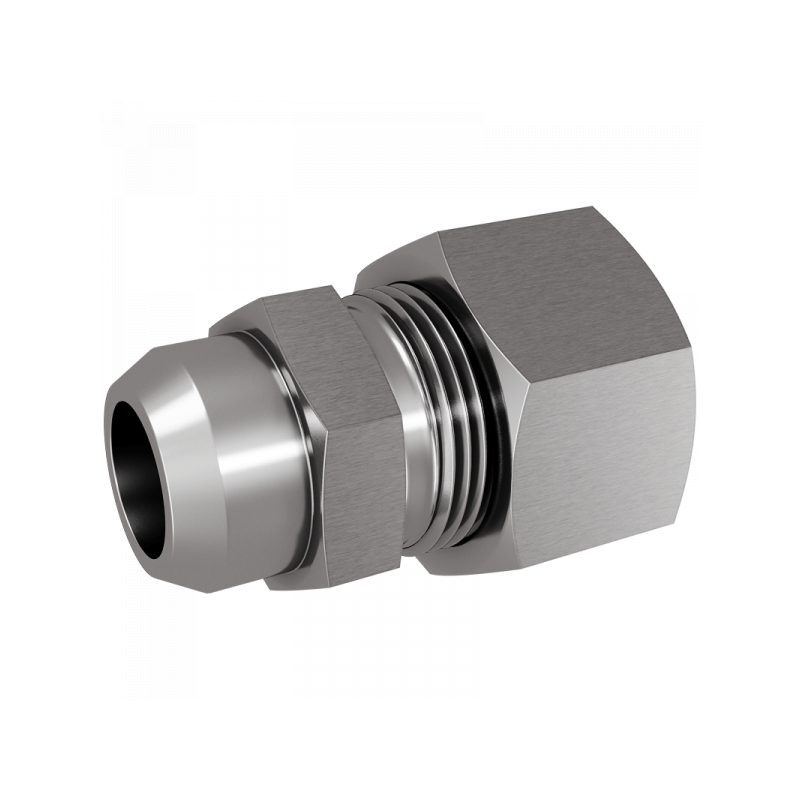

ASV-L/S:

A B PN / Bar L1 / mm L2 / mm L3 / mm S1 S2 Material Art.Nr. Stutzen PDF
10 06 315 14 21 31 12 14 1.4571 ASV06L  XASV06L
12 08 315 16 23 33 14 17 1.4571 ASV08L  XASV08L
14 10 315 18 25 36 17 19 1.4571 ASV10L  XASV10L
16 12 315 18 25 36 19 22 1.4571 ASV12L  XASV12L
19 15 315 22 29 40 22 27 1.4571 ASV15L  XASV15L
22 18 315 23,5 31 43 27 32 1.4571 ASV18L  XASV18L
27 22 160 28,5 36 48 32 36 1.4571 ASV22L  XASV22L
32 28 160 30,5 38 52 41 41 1.4571 ASV28L  XASV28L
40 35 160 32,5 43 59 46 50 1.4571 ASV35L  XASV35L
46 42 160 35 46 62 55 60 1.4571 ASV42L  XASV42L
11 06 630 19 26 36 14 17 1.4571 ASV06S  XASV06S
13 08 630 21 28 38 17 19 1.4571 ASV08S  XASV08S
15 10 630 22,5 30 42 19 22 1.4571 ASV10S  XASV10S
17 12 630 24,5 32 44 22 24 1.4571 ASV12S  XASV12S
19 14 630 27 35 47 24 27 1.4571 ASV14S  XASV14S
21 16 400 26,5 35 48 27 30 1.4571 ASV16S  XASV16S
26 20 400 29,5 40 55 32 36 1.4571 ASV20S  XASV20S
31 25 400 32 44 60 41 46 1.4571 ASV25S  XASV25S
36 30 400 35,5 49 65 46 50 1.4571 ASV30S  XASV30S
44 38 250 38 54 73 55 60 1.4571 ASV38S  XASV38S
