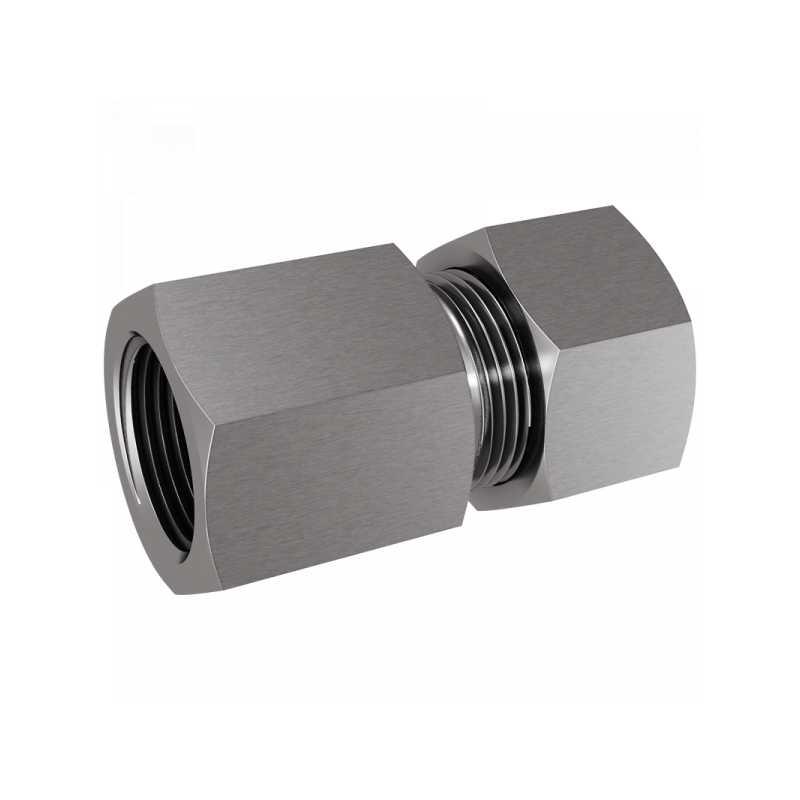

GAI-L:

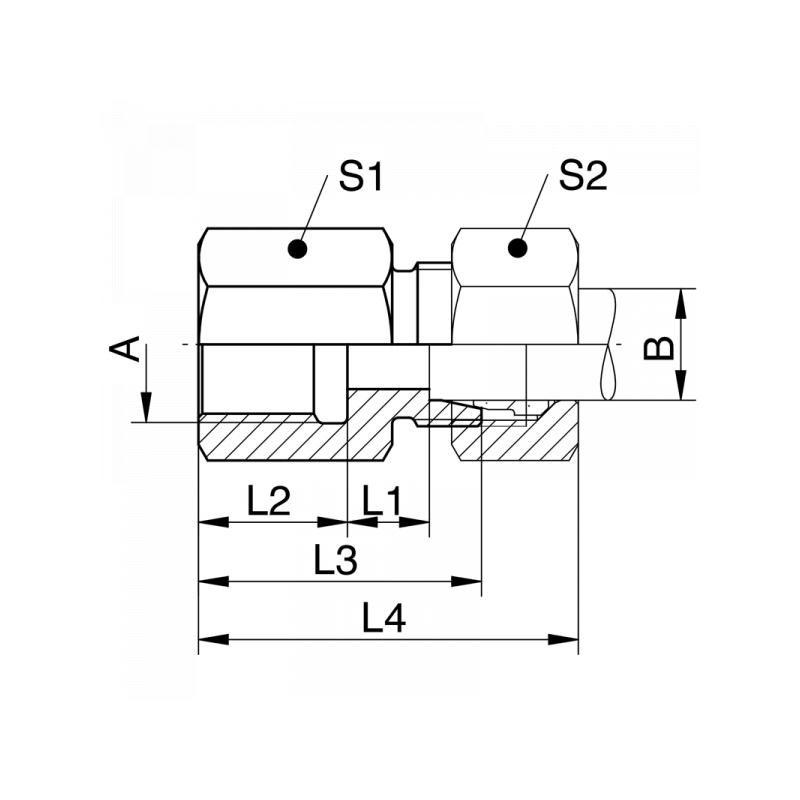

A B PN / Bar L1 / mm L2 / mm L3 / mm L4 / mm S1 S2 Material Art.Nr. Stutzen PDF
G1/8 06 315 7 12 26 36 14 14 1.4571 GAI06L01  XGAI06L01
G1/4 06 315 7 17 31 41 19 14 1.4571 GAI06L02  XGAI06L02
G3/8 06 315 8 17 32 42 22 14 1.4571 GAI06L03  XGAI06L03
G1/2 06 315 8 20 35 45 27 14 1.4571 GAI06L04  XGAI06L04
G1/8 08 315 7 12 26 36 17 17 1.4571 GAI08L01  XGAI08L01
G1/4 08 315 7 17 31 41 19 17 1.4571 GAI08L02  XGAI08L02
G3/8 08 315 8 17 32 42 24 17 1.4571 GAI08L03  XGAI08L03
G1/2 08 315 9 20 36 46 27 17 1.4571 GAI08L04  XGAI08L04
G1/4 10 315 8 17 32 43 19 19 1.4571 GAI10L02  XGAI10L02
G3/8 10 315 9 17 33 44 24 19 1.4571 GAI10L03  XGAI10L03
G1/2 10 315 10 20 37 48 27 19 1.4571 GAI10L04  XGAI10L04
G1/4 12 315 9,5 17 33,5 44,5 19 22 1.4571 GAI12L02  XGAI12L02
G3/8 12 315 9 17 33 44 24 22 1.4571 GAI12L03  XGAI12L03
G1/2 12 315 10 20 37 48 27 22 1.4571 GAI12L04  XGAI12L04
G3/4 12 315 10 22 39 50 32 22 1.4571 GAI12L06  XGAI12L06
G1/4 15 315 10 17 34 45 22 27 1.4571 GAI15L02  XGAI15L02
G3/8 15 315 10 17 34 45 24 27 1.4571 GAI15L03  XGAI15L03
G1/2 15 315 11 20 38 49 27 27 1.4571 GAI15L04  XGAI15L04
G3/8 18 315 9,5 17 34 46 27 32 1.4571 GAI18L03  XGAI18L03
G1/2 18 315 10,5 20 38 50 27 32 1.4571 GAI18L04  XGAI18L04
G3/4 18 315 10,5 22 40 52 36 32 1.4571 GAI18L06  XGAI18L06
G1 18 315 11 24,5 43 55 41 32 1.4571 GAI18L08  XGAI18L08
G1/2 22 160 13,5 20 41 53 32 36 1.4571 GAI22L04  XGAI22L04
G3/4 22 160 13,5 22 43 55 32 36 1.4571 GAI22L06  XGAI22L06
G1 22 160 14 24,5 46 58 41 36 1.4571 GAI22L08  XGAI22L08
G1 28 160 13,5 24,5 45,5 59,5 41 41 1.4571 GAI28L08  XGAI28L08
G1 1/4 35 160 14,5 26,5 51,5 67,5 55 50 1.4571 GAI35L10  XGAI35L10
G1 1/2 42 160 14 28,5 53,5 69,5 60 60 1.4571 GAI42L12  XGAI42L12
