T-L/S:

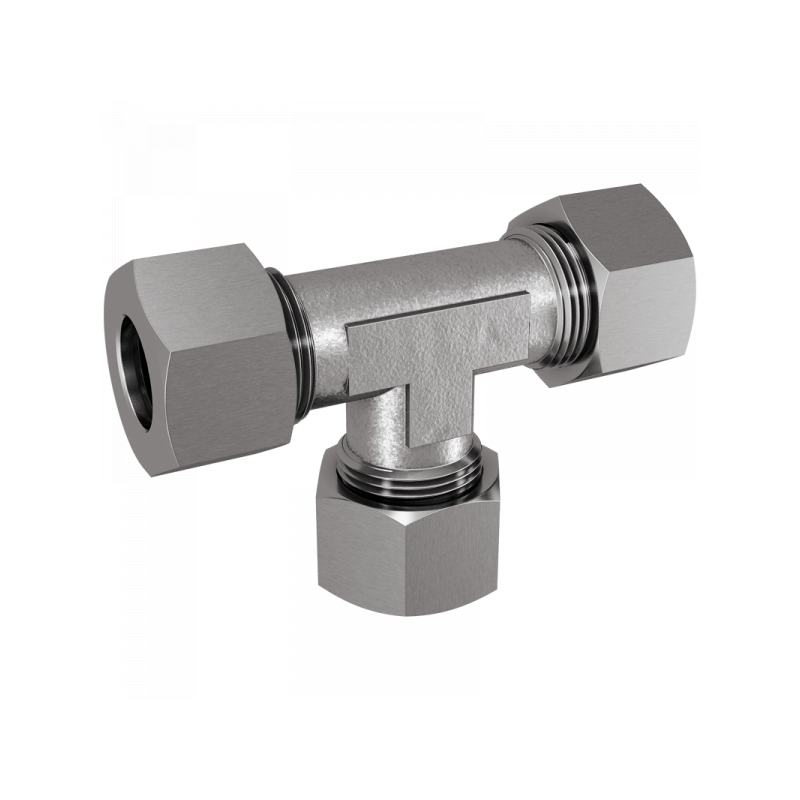

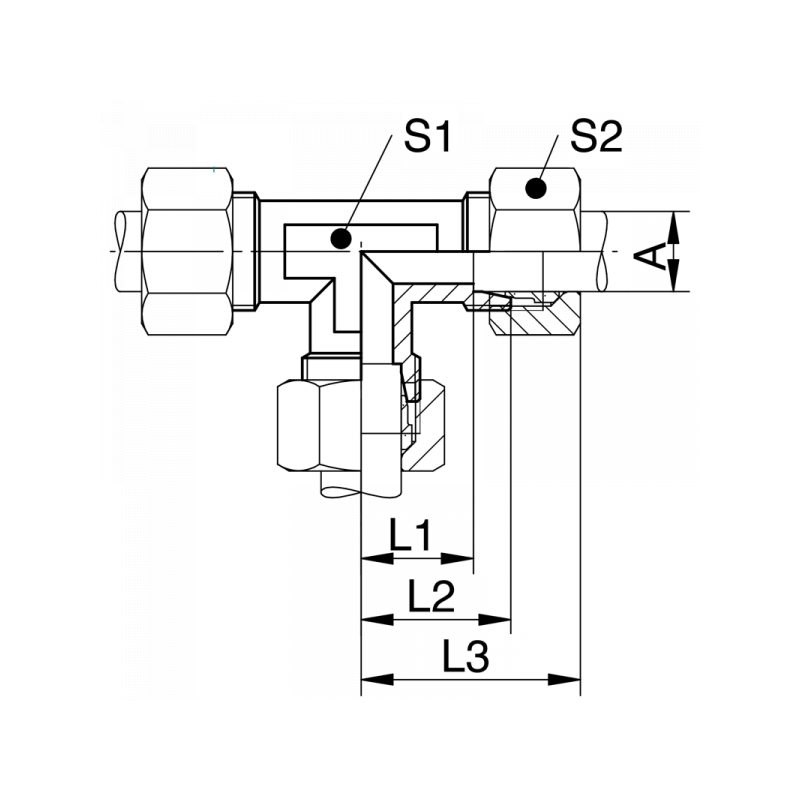

A PN / Bar L1 / mm L2 / mm L3 / mm S1 S2 Material Art.Nr. Stutzen PDF
06 315 12 19 19 12 14 1.4571 T06L  XT06L
08 315 14 21 31 12 17 1.4571 T08L  XT08L
10 315 15 22 33 14 19 1.4571 T10L  XT10L
12 315 17 24 35 17 22 1.4571 T12L  XT12L
15 315 21 28 39 19 27 1.4571 T15L  XT15L
18 315 23,5 31 43 24 32 1.4571 T18L  XT18L
22 160 27,5 35 47 27 36 1.4571 T22L  XT22L
28 160 30,5 38 52 36 41 1.4571 T28L  XT28L
35 160 34,5 45 61 41 50 1.4571 T35L  XT35L
42 160 40 51 67 50 60 1.4571 T42L  XT42L
06 630 16 23 33 12 17 1.4571 T06S  XT06S
08 630 17 24 34 14 19 1.4571 T08S  XT08S
10 630 17,5 25 37 17 22 1.4571 T10S  XT10S
12 630 21,5 29 41 17 24 1.4571 T12S  XT12S
14 630 22 30 42 19 27 1.4571 T14S  XT14S
16 400 24,5 33 46 24 30 1.4571 T16S  XT16S
20 400 26,5 37 52 27 36 1.4571 T20S  XT20S
25 400 30 42 58 36 46 1.4571 T25S  XT25S
30 400 35,5 49 65 41 50 1.4571 T30S  XT30S
38 250 41 57 76 50 60 1.4571 T38S  XT38S
