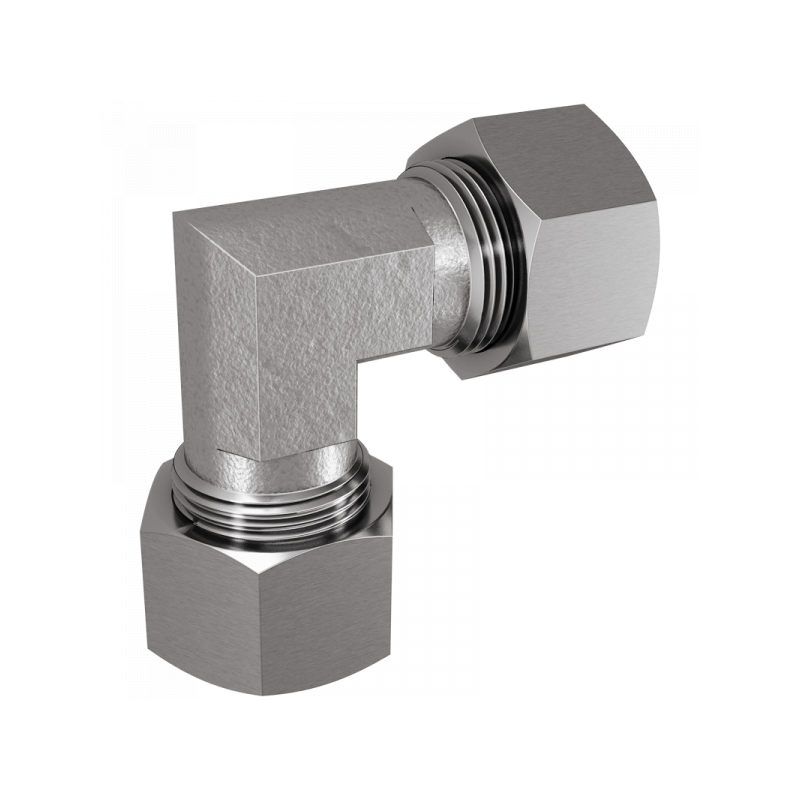

W-L/S:

A PN / Bar L1 / mm L2 / mm L3 / mm S1 S2 Material Art.Nr. Stutzen PDF
06 315 12 19 29 12 14 1.4571 W06L  XW06L
08 315 14 21 31 12 17 1.4571 W08L  XW08L
10 315 15 22 33 14 19 1.4571 W10L  XW10L
12 315 17 24 35 17 22 1.4571 W12L  XW12L
15 315 21 28 39 19 27 1.4571 W15L  XW15L
18 315 23,5 31 43 24 32 1.4571 W18L  XW18L
22 160 27,5 35 47 27 36 1.4571 W22L  XW22L
28 160 30,5 38 52 36 41 1.4571 W28L  XW28L
35 160 34,5 45 61 41 50 1.4571 W35L  XW35L
42 160 40 51 67 50 60 1.4571 W42L  XW42L
06 630 16 23 33 12 17 1.4571 W06S  XW06S
08 630 17 24 34 14 19 1.4571 W08S  XW08S
10 630 17,5 25 37 17 22 1.4571 W10S  XW10S
12 630 21,5 29 41 17 24 1.4571 W12S  XW12S
14 630 22 30 42 19 27 1.4571 W14S  XW14S
16 400 24,5 33 46 24 30 1.4571 W16S  XW16S
20 400 26,5 37 52 27 36 1.4571 W20S  XW20S
25 400 30 42 58 36 46 1.4571 W25S  XW25S
30 400 35,5 49 65 41 50 1.4571 W30S  XW30S
38 250 41 57 76 50 60 1.4571 W38S  XW38S
