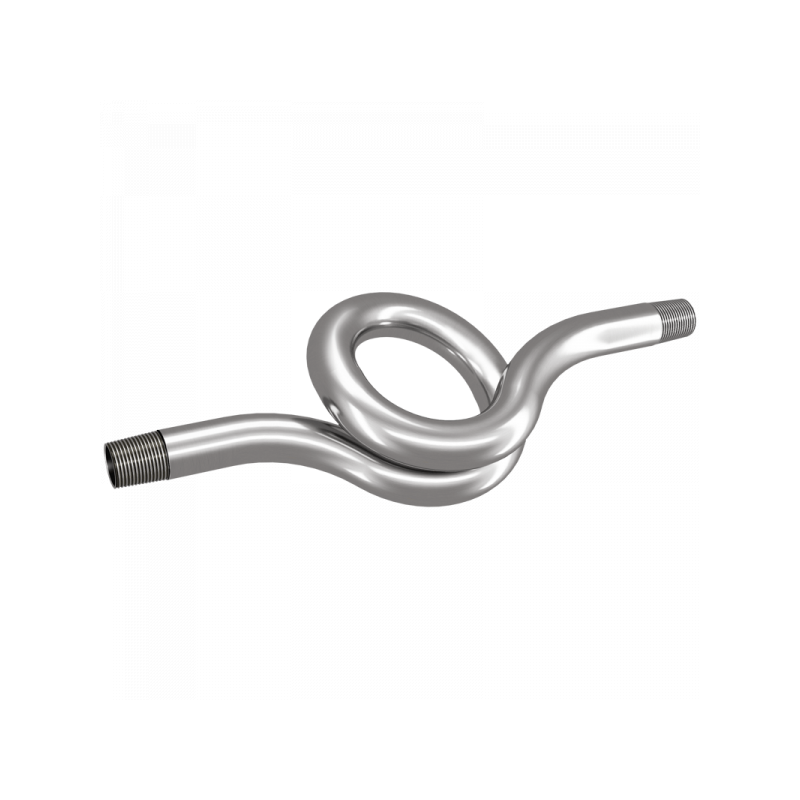

Fig. 95:

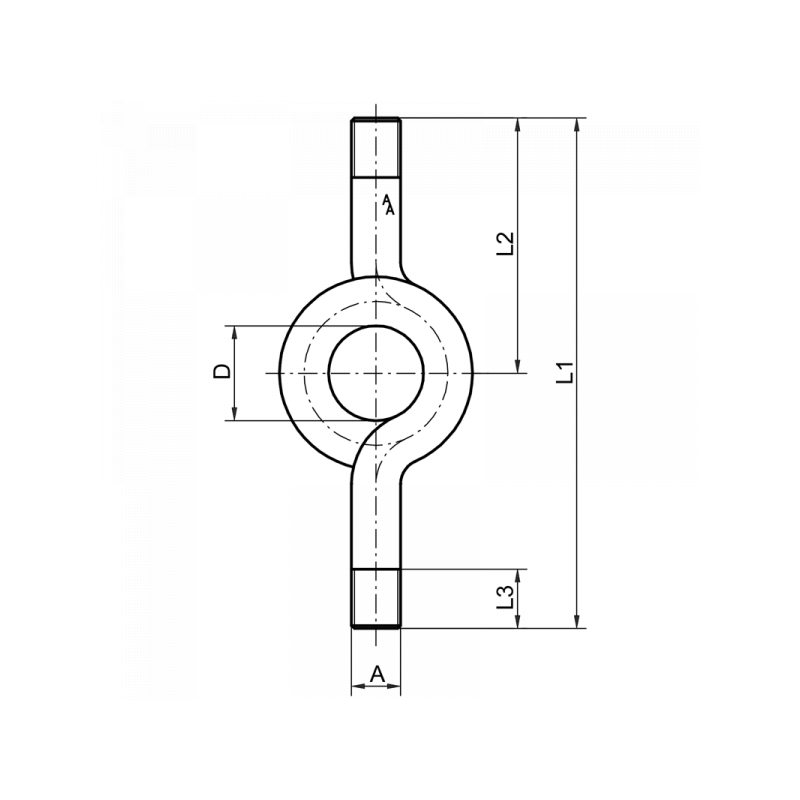

A L1 / mm L2 / mm L3 / mm D Material Art.Nr. PDF
R1/4 240 120 14 68 1.4571 10095023
R1/2 260 130 20 56 1.4571 10095043
R1/4 240 120 14 68 Stahl 10095022
R1/2 260 130 20 56 Stahl 10095042
