Cutting ring fittings

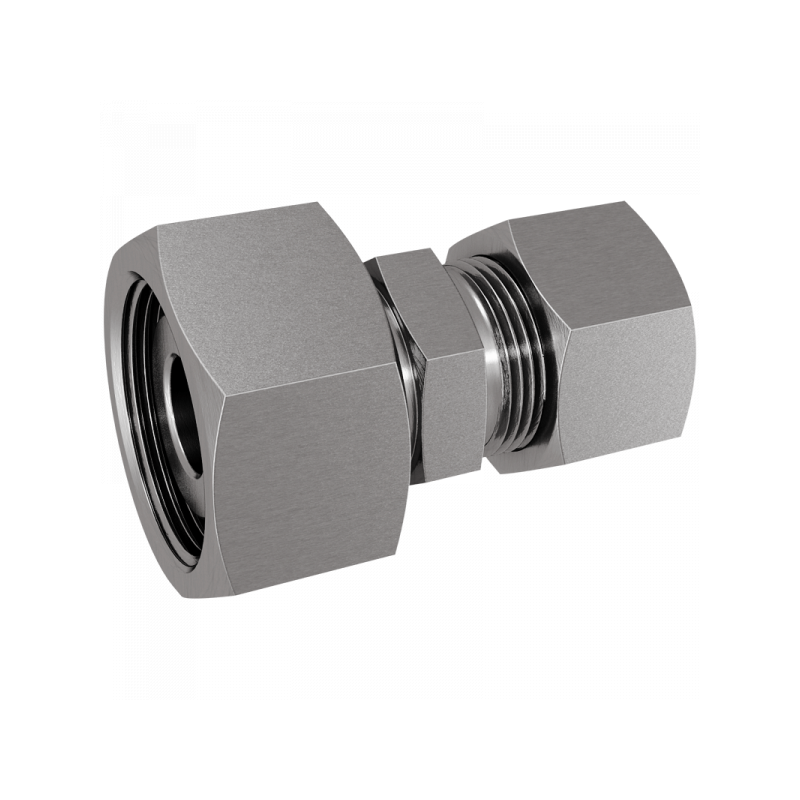

Reducing couplings with union adjustable

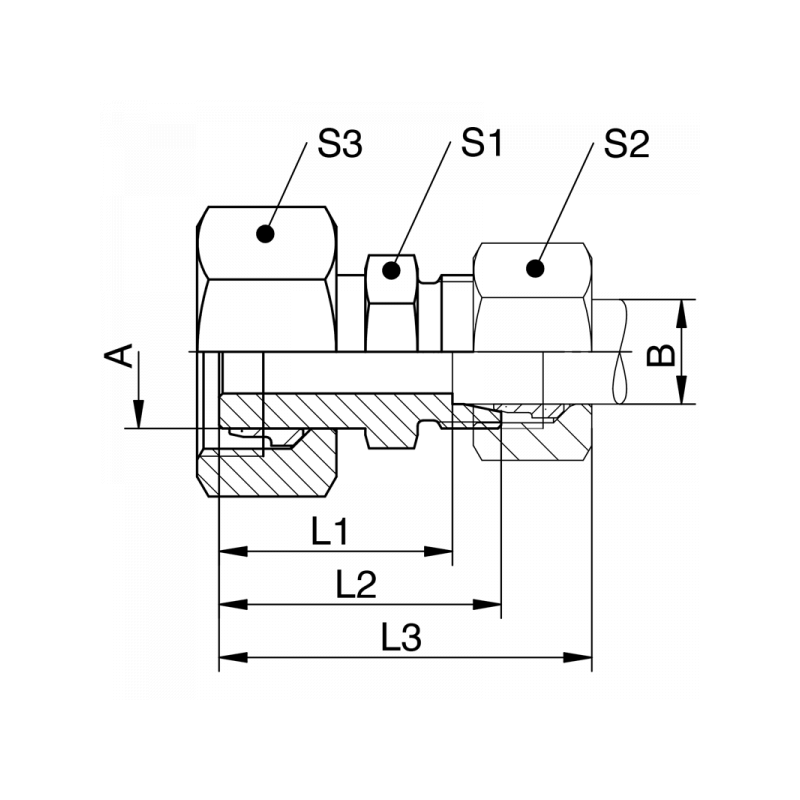

A	B	PN / Bar	L1 / mm	L2 / mm	L3 / mm	S1	S2	S3	Material	Art.Nr.	Stutzen
08	06	630	29,5	36,5	46,5	14	17	19	1.4571	KOR0806S	KOR0806SSVM
10	06	630	31,5	38,5	48,5	14	17	22	1.4571	KOR1006S	KOR1006SSVM
10	08	630	31,5	38,5	48,5	17	19	22	1.4571	KOR1008S	KOR1008SSVM
12	06	630	31,5	38,5	48,5	14	17	24	1.4571	KOR1206S	KOR1206SSVM
12	08	630	31,5	38,5	48,5	17	19	24	1.4571	KOR1208S	KOR1208SSVM
12	10	630	32	39,5	51,5	19	22	24	1.4571	KOR1210S	KOR1210SSVM
14	10	630	34	41,5	53,5	19	22	27	1.4571	KOR1410S	KOR1410SSVM
14	12	630	34	41,5	53,5	22	24	27	1.4571	KOR1412S	KOR1412SSVM
16	10	400	34,5	42	54	19	22	30	1.4571	KOR1610S	KOR1610SSVM
16	12	400	34,5	42	54	22	24	30	1.4571	KOR1612S	KOR1612SSVM
16	14	400	36	44	56	24	27	30	1.4571	KOR1614S	KOR1614SSVM
20	12	400	38,5	46	58	22	24	36	1.4571	KOR2012S	KOR2012SSVM
20	14	400	40	48	60	24	27	36	1.4571	KOR2014S	KOR2014SSVM
20	16	400	40,5	49	62	27	30	36	1.4571	KOR2016S	KOR2016SSVM
25	14	400	44,5	52,5	64,5	27	27	46	1.4571	KOR2514S	KOR2514SSVM
25	16	400	44	52,5	65,5	27	30	46	1.4571	KOR2516S	KOR2516SSVM
25	20	400	44	54,5	70,5	32	36	46	1.4571	KOR2520S	KOR2520SSVM
30	16	400	46,5	55	68	32	30	50	1.4571	KOR3016S	KOR3016SSVM
30	20	400	46,5	57	72	32	36	50	1.4571	KOR3020S	KOR3020SSVM
30	25	400	48	60	76	41	46	50	1.4571	KOR3025S	KOR3025SSVM
38	12	250	52,5	60	72	41	24	60	1.4571	KOR3812S	KOR3812SSVM
38	20	250	53,5	64	79	41	36	60	1.4571	KOR3820S	KOR3820SSVM
38	25	250	54	66	82	41	46	60	1.4571	KOR3825S	KOR3825SSVM
38	30	250	55,5	69	85	46	50	60	1.4571	KOR3830S	KOR3830SSVM
