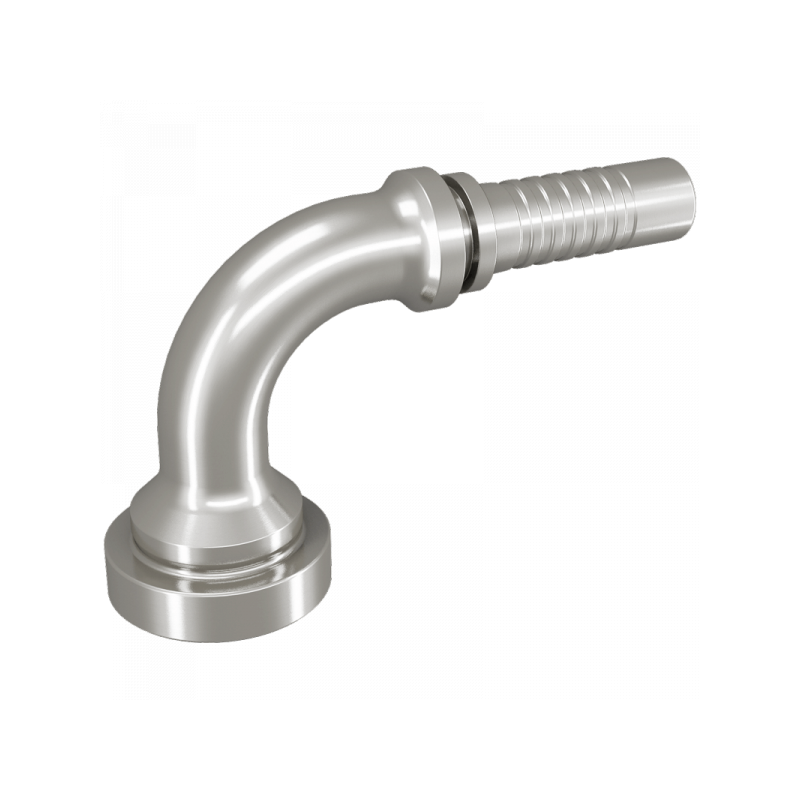

SFS-90°:

A B / mm DN L1 / mm L2 / mm L3 / mm C / mm Material Art.Nr. PDF
1/2-31,8 12,8 12 79 43,7 44 9,5 1.4571 4762DN12
3/4-41,3 16 16 91 52,7 55 12,6 1.4571 4762DN16
1/2-31,8 16 16 93 54,7 52 12,6 1.4571 4762DN16G04
3/4-41,3 19,1 20 104 58,2 56,0 14,8 1.4571 4762DN20
1-47,6 19,1 20 112 66,2 67 14,8 1.4571 4762DN20G08
1-47,6 25,9 25 151 96 69 20,0 1.4571 4762DN25
1 1/4-54,0 32,5 32 155 95,2 86 26,0 1.4571 4762DN32
1 1/2-63,5 38,9 40 173 105,5 107,0 31,0 1.4571 4762DN40
2-79,4 51,6 50 205 130 140,0 40,0 1.4571 4762DN50
