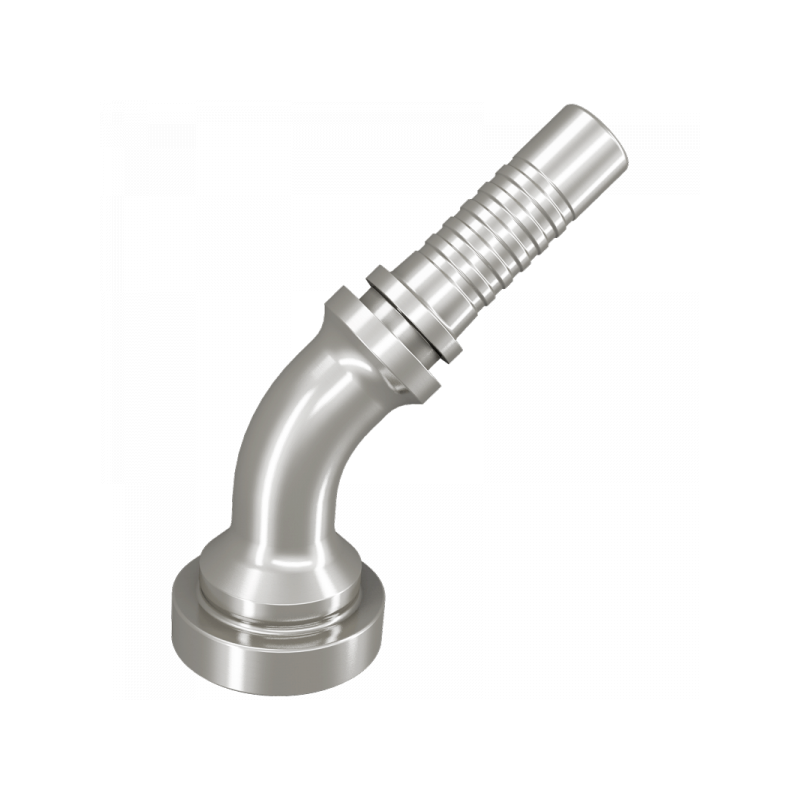

SFS-45°:

A B / mm DN L1 / mm L2 / mm L3 / mm C / mm Material Art.Nr. PDF
3/4-41,3 12,8 12 92 56,7 29,0 9,5 1.4571 4761DN12G06
3/4-41,3 16 16 98 59,7 32 12,6 1.4571 4761DN16
1/2-31,8 16 16 98 59,7 28 12,6 1.4571 4761DN16G04
1-47,6 19,1 20 120 74,2 38 14,8 1.4571 4761DN20G08
1-47,6 25,9 25 140 85 33 20,0 1.4571 4761DN25
1 1/4-54,0 25,9 25 153 98 39 20,0 1.4571 4761DN25G10
