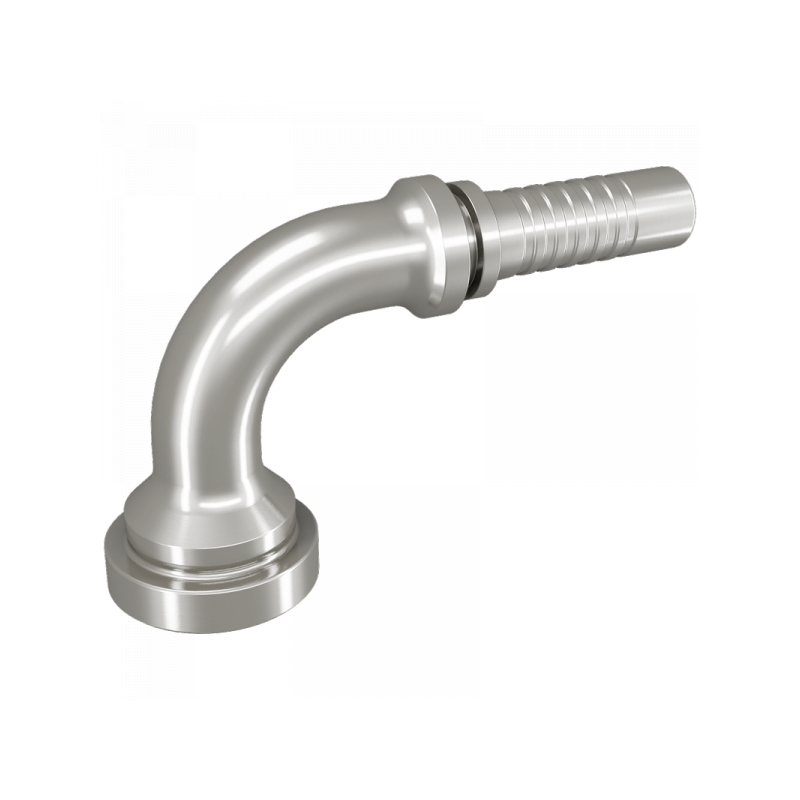

SFL-90°:

A B / mm DN L1 / mm L2 / mm L3 / mm C / mm Material Art.Nr. PDF
1/2-30,2 12,8 12 76 41,7 45 9,5 1.4571 4752DN12
3/4-38,1 16 16 90 62 55 12,6 1.4571 4752DN16
1-44,5 16 16 90 48,7 60 12,6 1.4571 4752DN16G08
3/4-38,1 19,1 20 100 53,2 58 14,8 1.4571 4752DN20
1-44,5 19,1 20 127 81 70,0 14,8 1.4571 4752DN20G08
1-44,5 25,9 25 125 75 72 20,0 1.4571 4752DN25
1 1/4-50,8 32,5 32 153 90,2 85 26,0 1.4571 4752DN32
1 1/2-60,3 38,9 40 182 111,5 110 31,0 1.4571 4752DN40
2-71,4 51,6 50 205 125 140 40,0 1.4571 4752DN50
