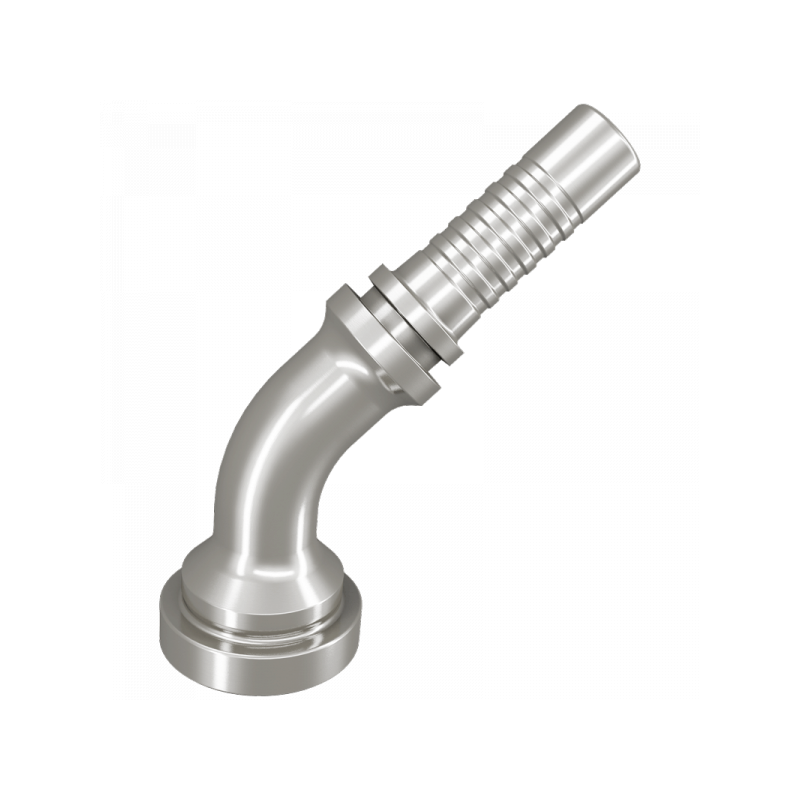

SFL-45°:

A B / mm DN L1 / mm L2 / mm L3 / mm C / mm Material Art.Nr. PDF
1/2-30,2 12,8 12 85 51,5 24 9,5 1.4571 4751DN12
3/4-38,1 16 16 105 63,7 36 12,6 1.4571 4751DN16
3/4-38,1 19,1 20 120 74,2 32 14,8 1.4571 4751DN20
1-44,5 25,9 25 140 81 35 20,0 1.4571 4751DN25
1 1/4-50,8 32,5 32 160 100,2 39,0 26,0 1.4571 4751DN32
1 1/2-60,3 38,9 40 200 129,5 50 31,0 1.4571 4751DN40
2-71,4 51,6 50 223,5 148,5 67,0 40,0 1.4571 4751DN50
