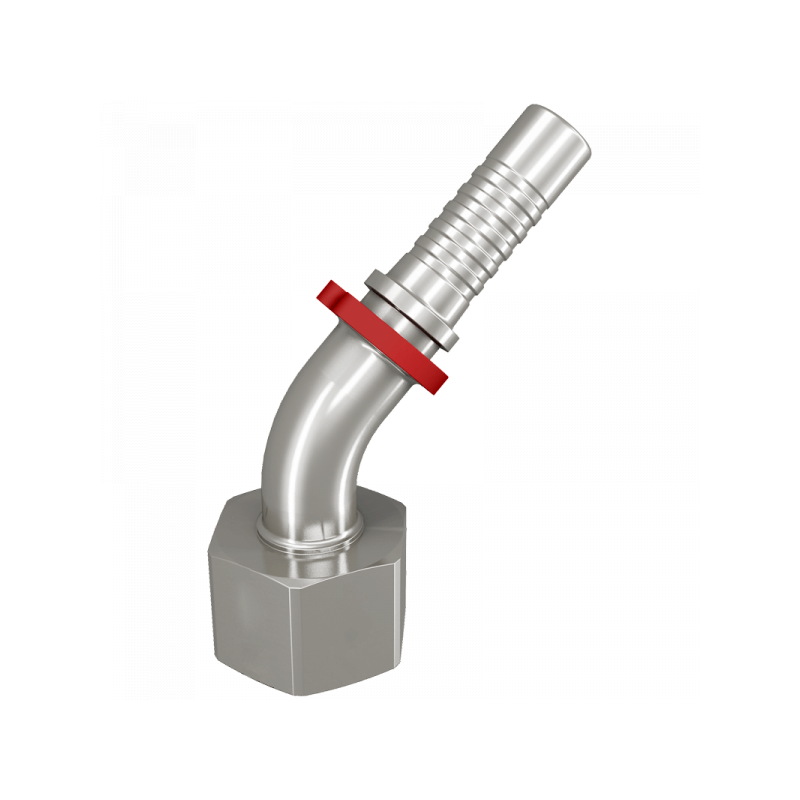

DKOS-45°:

A B / mm DN L1 / mm L2 / mm L3 / mm S1 C / mm Material Art.Nr. PDF
M18x1,5 6,7 6 80 50 20 22 3,9 1.4571 4201DN06
M14x1,5 6,7 6 76 46 19 17 3,9 1.4571 4201DN06M14
M16x1,5 6,7 6 66 36 18 19 3,9 1.4571 4201DN06M16
M20x1,5 8 8 75 45 22 24 5,4 1.4571 4201DN08
M22x1,5 9,6 10 95 61,7 22 27 6,5 1.4571 4201DN10
M20x1,5 9,6 10 76 42,7 20 24 6,5 1.4571 4201DN10M20
M24x1,5 12,8 12 87 51,7 25 30 9,5 1.4571 4201DN12
M30x2 16 16 97 58,7 28 36 12,6 1.4571 4201DN16
M36x2 19,1 20 115 69,2 33 46 14,8 1.4571 4201DN20
M42x2 25,9 25 144 89 40 50 20,0 1.4571 4201DN25
M52x2 32,5 32 175 115,2 45 60 26,0 1.4571 4201DN32
