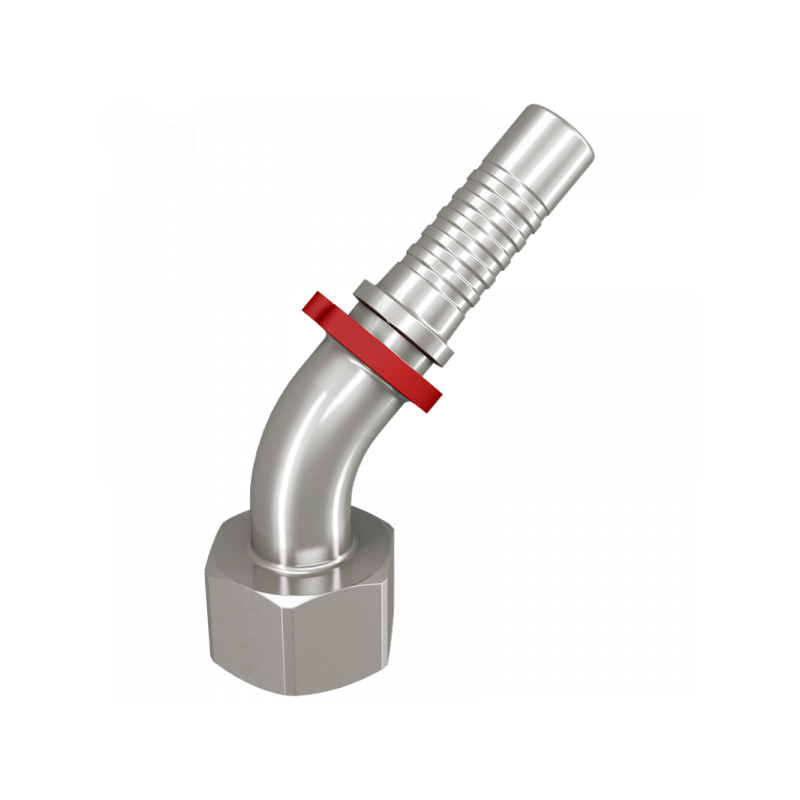

DKOL-45°:

A B / mm DN L1 / mm L2 / mm L3 / mm S1 C / mm Material Art.Nr. PDF
M14x1,5 6,7 6 66 36 20 17 3,9 1.4571 4101DN06
M12x1,5 6,7 6 67 37 18 14 3,9 1.4571 4101DN06M12
M16x1,5 6,7 6 70 40 20 19 3,9 1.4571 4101DN06M16
M16x1,5 8 8 70 40 19 19 5,4 1.4571 4101DN08
M18x1,5 8 8 71 41 20 22 5,4 1.4571 4101DN08M18
M18x1,5 9,6 10 76 42,7 20 22 6,5 1.4571 4101DN10
M22x1,5 9,6 10 76 42,7 20 27 6,5 1.4571 4101DN10M22
M22x1,5 12,8 12 82 46,7 23 27 9,5 1.4571 4101DN12
M26x1,5 16 16 91 52,7 27 32 12,6 1.4571 4101DN16
M30x2 19,1 20 115 69,2 29 36 14,8 1.4571 4101DN20
M36x2 25,9 25 135 80 35 41 20,0 1.4571 4101DN25
M45x2 32,5 32 162 102,2 40 50 26,0 1.4571 4101DN32
M52x2 38,9 40 182 114,5 45 60 31,0 1.4571 4101DN40
