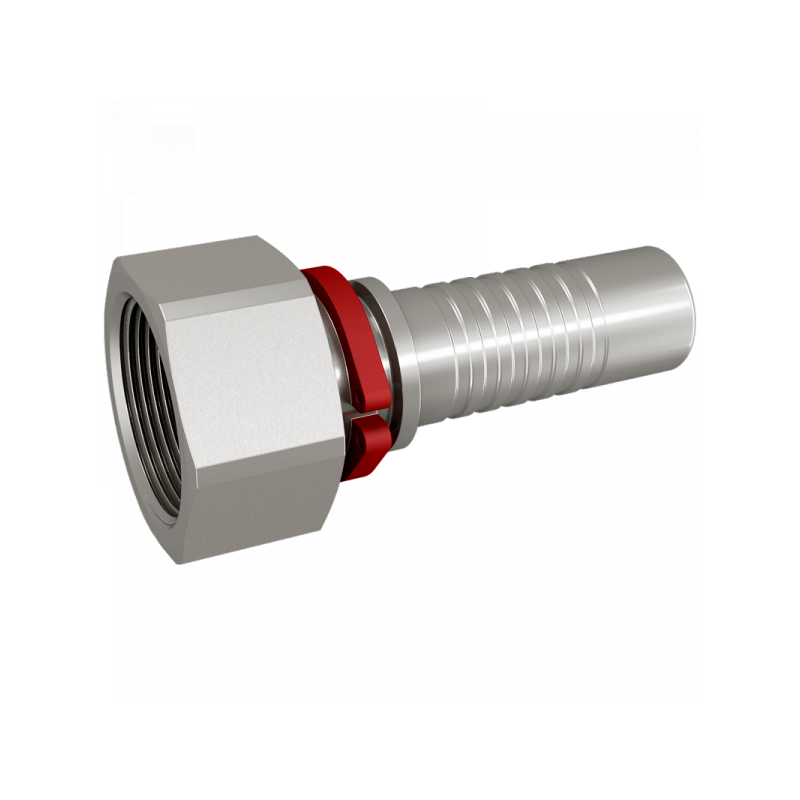

DKM:

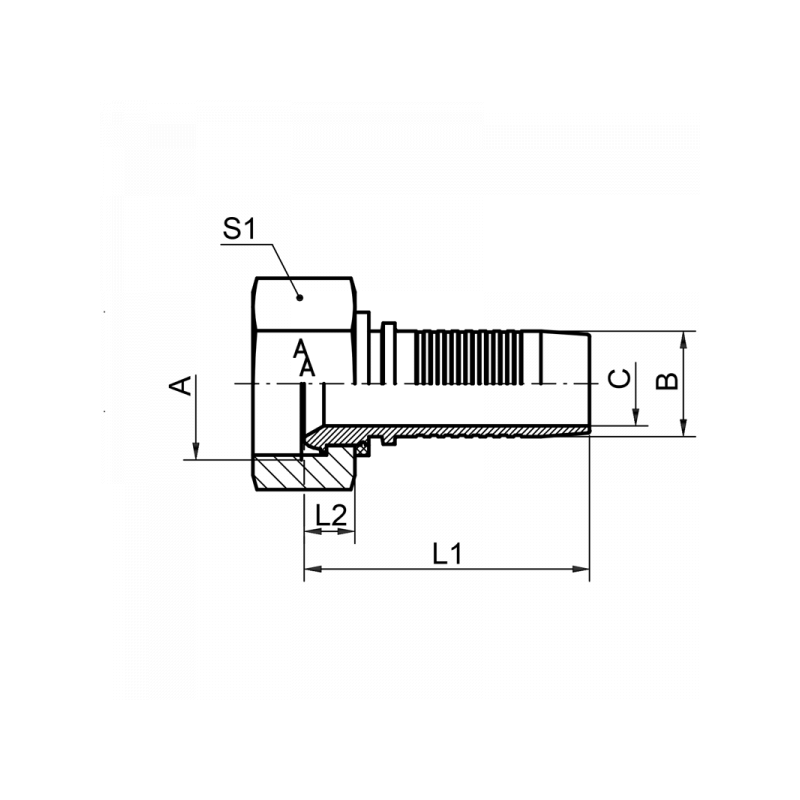

A B / mm DN L1 / mm L2 / mm S1 C / mm Material Art.Nr. PDF
M30x1,5 19,1 20 72 26,2 36 14,8 1.4571 4160DN20
M38x1,5 19,1 20 72 26,2 46 14,8 1.4571 4160DN20M38
M38x1,5 25,9 25 82 27 46 20,0 1.4571 4160DN25
M45x1,5 32,5 32 88 28,2 50 26,0 1.4571 4160DN32
M52x1,5 38,9 40 96 28,5 60 31,0 1.4571 4160DN40
M65x2 51,6 50 107,5 32,5 70 40,0 1.4571 4160DN50M65

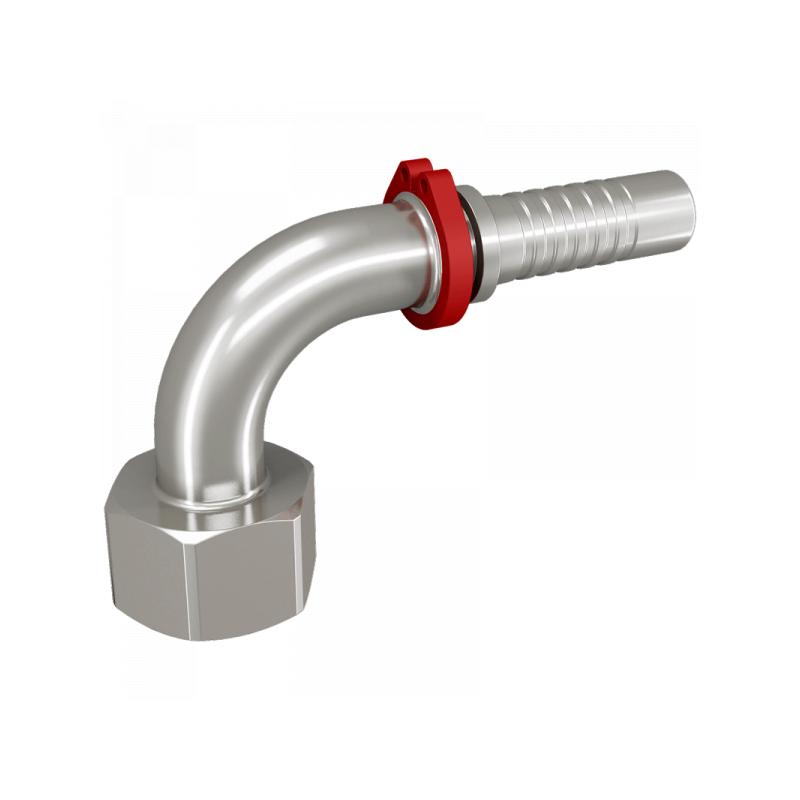

Related articles
