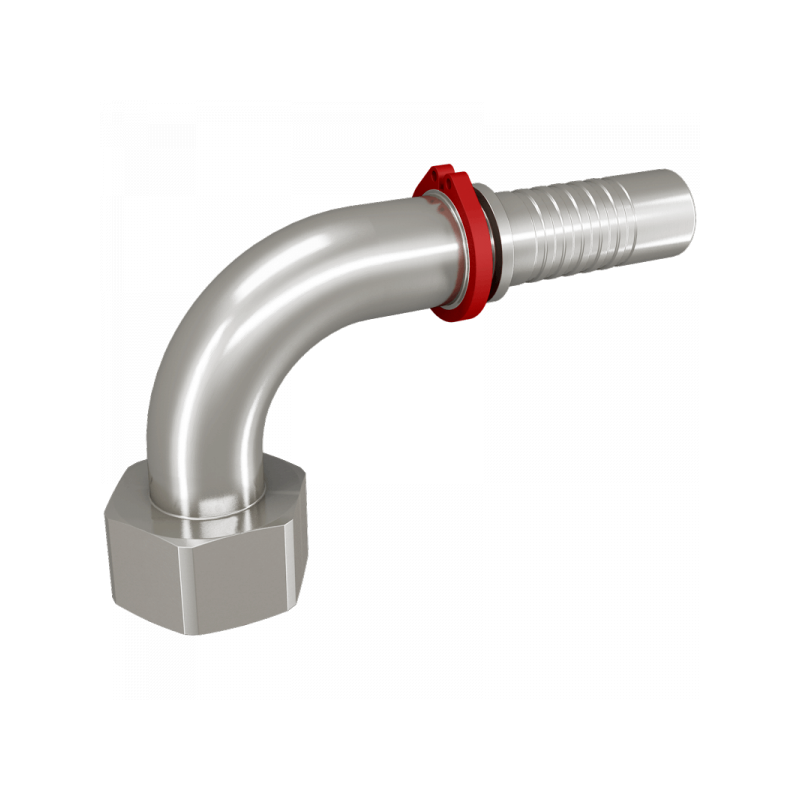

DKM-90°:

A B / mm DN L1 / mm L2 / mm L3 / mm S1 C / mm Material Art.Nr. PDF
M30x1,5 19,1 20 100 54,2 57 36 14,8 1.4571 4162DN20
M30x1,5 19,1 20 100 54,2 57 36 14,8 1.4571 4162DN20
M38x1,5 25,9 25 128 73 77 46 20,0 1.4571 4162DN25
M45x1,5 32,5 32 152 92,2 84 50 26,0 1.4571 4162DN32
M52x1,5 38,9 40 183 115,5 110 60 31,0 1.4571 4162DN40
M65x2 51,6 50 198 123 115 70 40,0 1.4571 4162DN50
