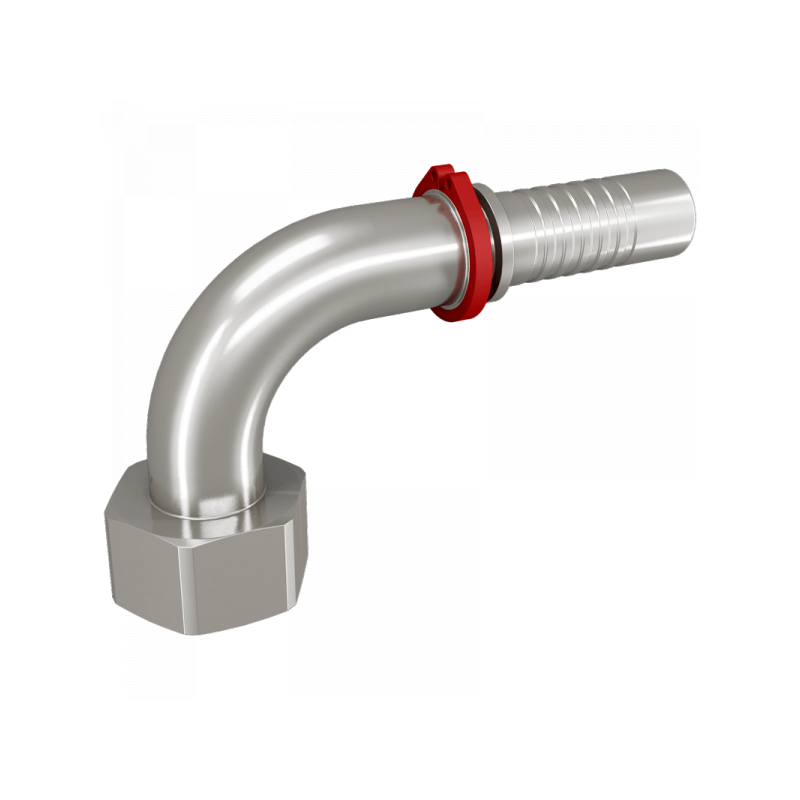

DKM-90°:

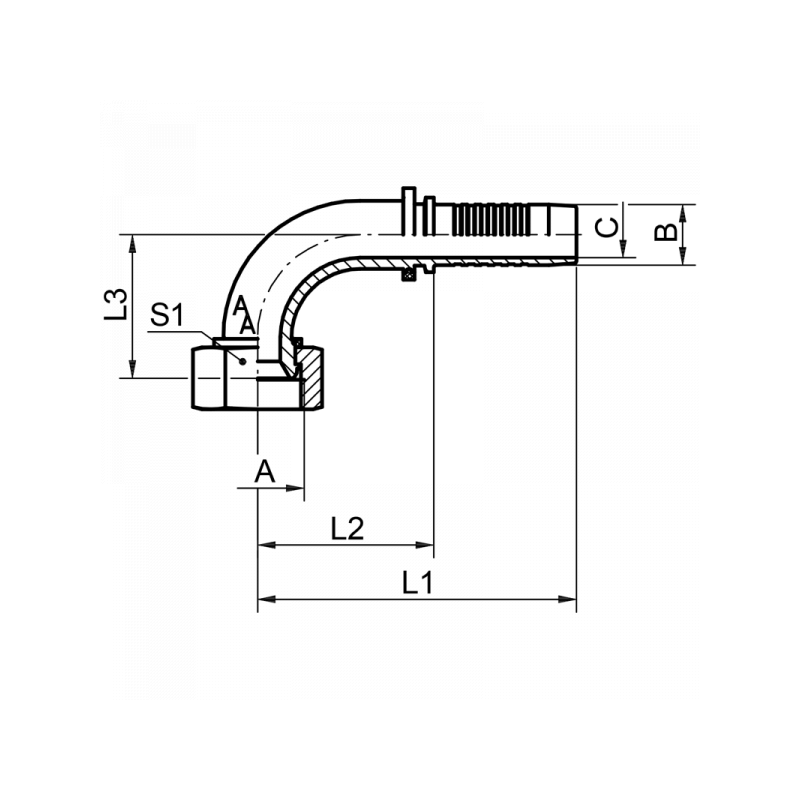

| A | B / mm | DN | L1 / mm | L2 / mm | L3 / mm | S1 | C / mm | Material | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|---|---|
| M30x1,5 | 19,1 | 20 | 100 | 54,2 | 57 | 36 | 14,8 | 1.4571 | 4162DN20 | |
| M30x1,5 | 19,1 | 20 | 100 | 54,2 | 57 | 36 | 14,8 | 1.4571 | 4162DN20 | |
| M38x1,5 | 25,9 | 25 | 128 | 73 | 77 | 46 | 20,0 | 1.4571 | 4162DN25 | |
| M45x1,5 | 32,5 | 32 | 152 | 92,2 | 84 | 50 | 26,0 | 1.4571 | 4162DN32 | |
| M52x1,5 | 38,9 | 40 | 183 | 115,5 | 110 | 60 | 31,0 | 1.4571 | 4162DN40 | |
| M65x2 | 51,6 | 50 | 198 | 123 | 115 | 70 | 40,0 | 1.4571 | 4162DN50 |
