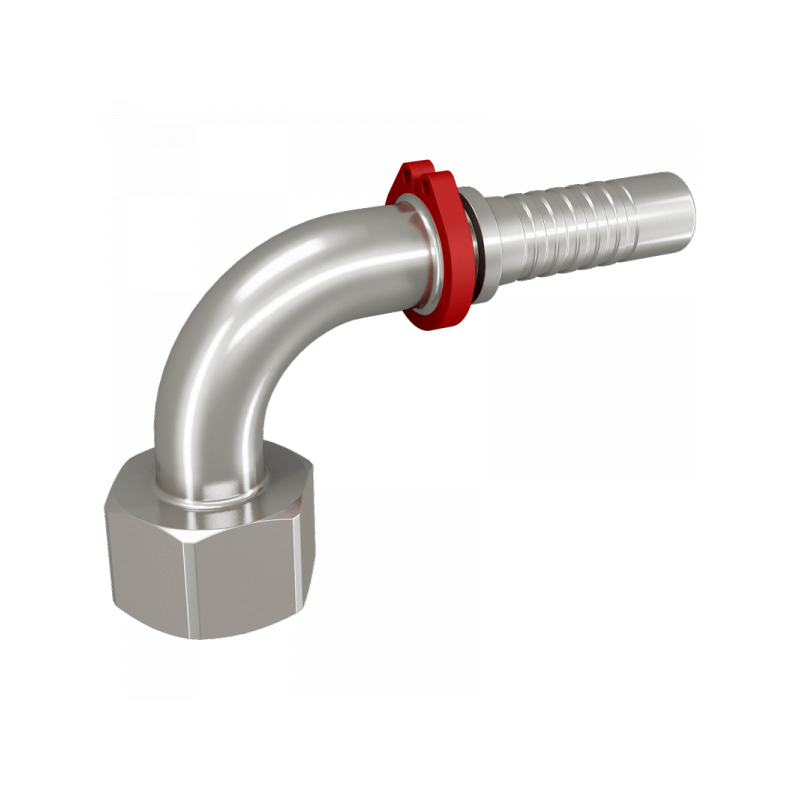

DKL-90°:

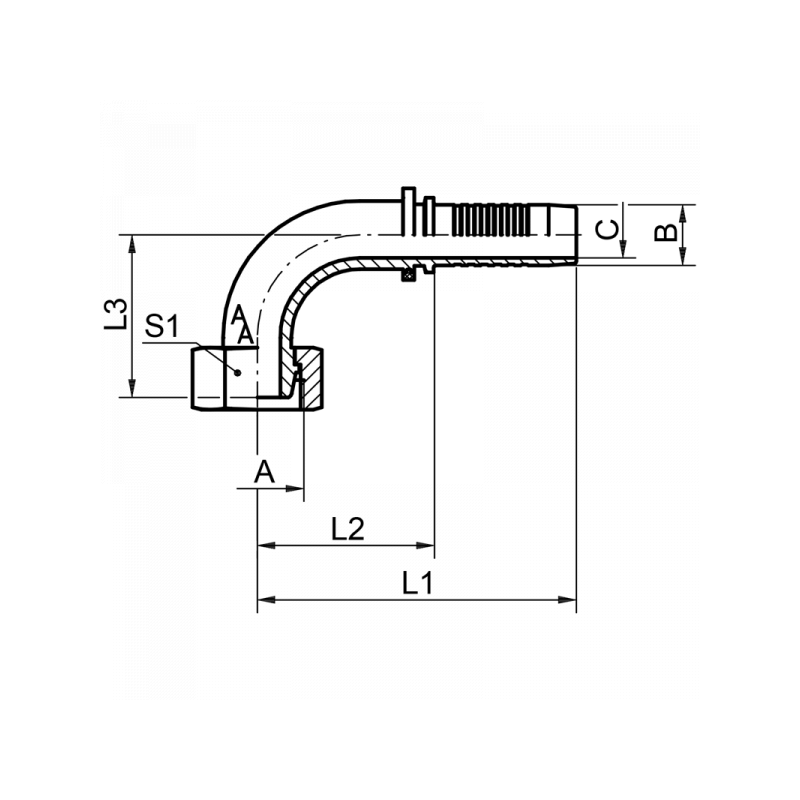

A B / mm DN L1 / mm L2 / mm L3 / mm S1 C / mm Material Art.Nr. PDF
M14x1,5 6,7 6 58 28 30 17 3,9 1.4571 4152DN06
M12x1,5 6,7 6 62 32 37 14 3,9 1.4571 4152DN06M12
M16x1,5 8 8 62 32 32 19 5,4 1.4571 4152DN08
M14x1,5 8 8 60 30 37 17 5,4 1.4571 4152DN08M14
M18x1,5 9,6 10 72 38,7 35 22 6,5 1.4571 4152DN10
M22x1,5 12,8 12 75 39,7 45 27 9,5 1.4571 4152DN12
M26x1,5 16 16 87 48,7 50 32 12,6 1.4571 4152DN16
M30x2 19,1 20 115 69,2 60 36 14,8 1.4571 4152DN20
