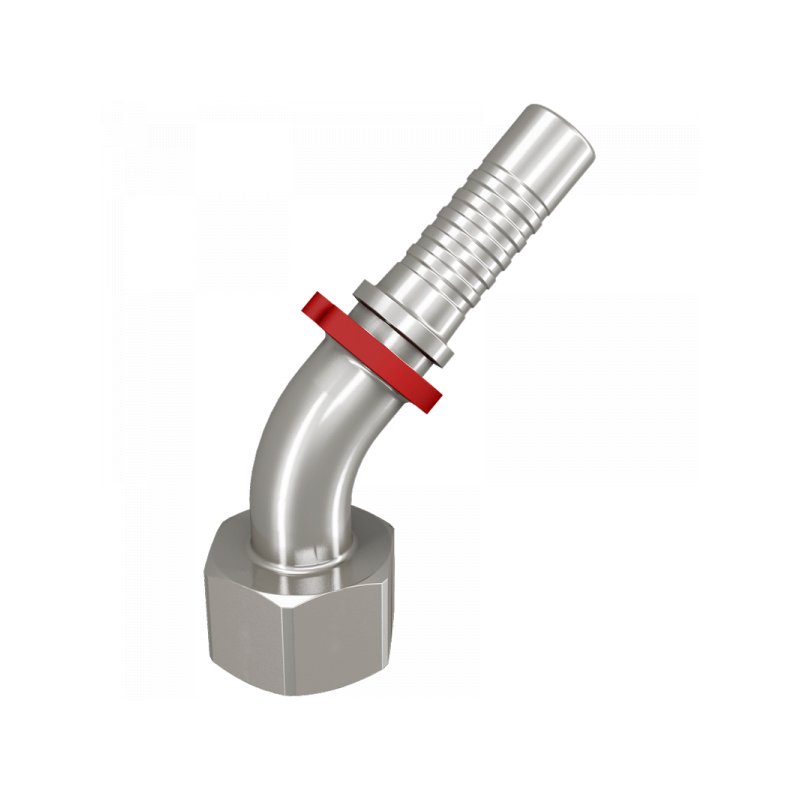

DKL-45°:

A B / mm DN L1 / mm L2 / mm L3 / mm S1 C / mm Material Art.Nr. PDF
M16x1,5 8 8 68 38 15,0 19 5,4 1.4571 4151DN08
M18x1,5 9,6 10 72 38,7 17,0 22 6,5 1.4571 4151DN10
M22x1,5 12,8 12 80 44,7 25 27 9,5 1.4571 4151DN12
M26x1,5 16 16 109,5 71 27,5 32 12,6 1.4571 4151DN16
M30x2 19,1 20 112 66,2 30 36 14,8 1.4571 4151DN20
