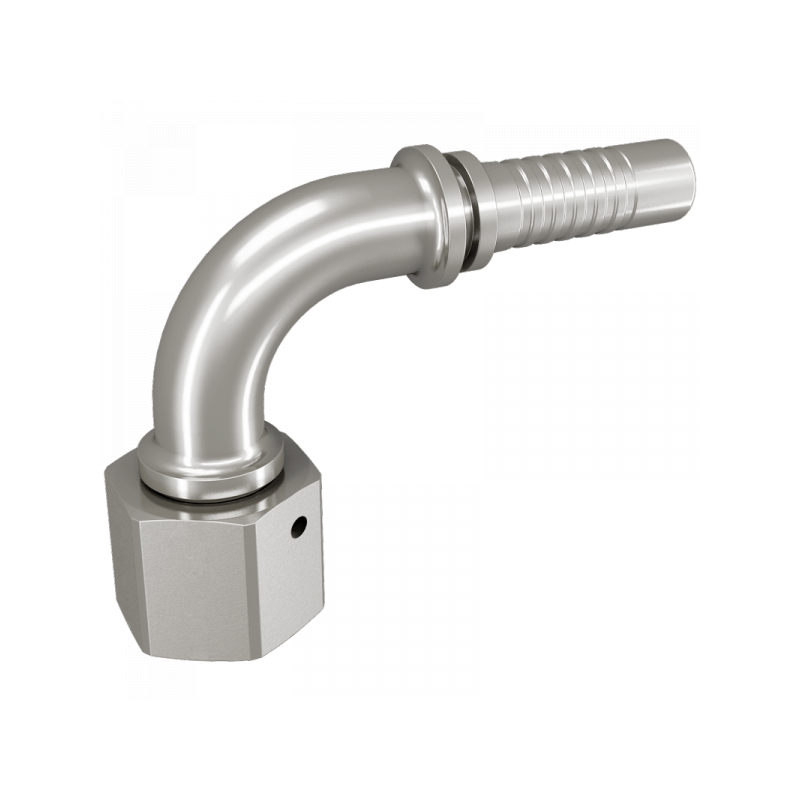

DKJ-90°:

A B / mm DN L1 / mm L2 / mm L3 / mm S1 C / mm Material Art.Nr. PDF
7/16-20UNF 6,7 6 57 27 27 17 3,9 1.4571 4292DN06U7/16
9/16-18UNF 6,7 6 57 27 35 19 3,9 1.4571 4292DN06U9/16
1/2-20UNF 8 8 60 30 35 19 5,4 1.4571 4292DN08U1/2
9/16-18UNF 8 8 60 30 35 19 5,4 1.4571 4292DN08U9/16
9/16-18UNF 9,6 10 75 41,7 32 19 6,5 1.4571 4292DN10U9/16
3/4-16UNF 12,8 12 78 42,7 40 22 9,5 1.4571 4292DN12U3/4
7/8-14UNF 12,8 12 78 42,7 40 27 9,5 1.4571 4292DN12U7/8
7/8-14UNF 16 16 84 45,7 52 27 12,6 1.4571 4292DN16U7/8
1 1/16-12UN 19,1 20 110 64,2 61 32 14,8 1.4571 4292DN20U11/16
1 5/16-12UN 25,9 25 134 95 75,5 41 20,0 1.4571 4292DN25U15/16
1 5/8-12UN 32,5 32 158 98,2 93 50 26,0 1.4571 4292DN32U15/8
1 7/8-12UN 38,9 40 180 112,5 113 60 31,0 1.4571 4292DN40U17/8
