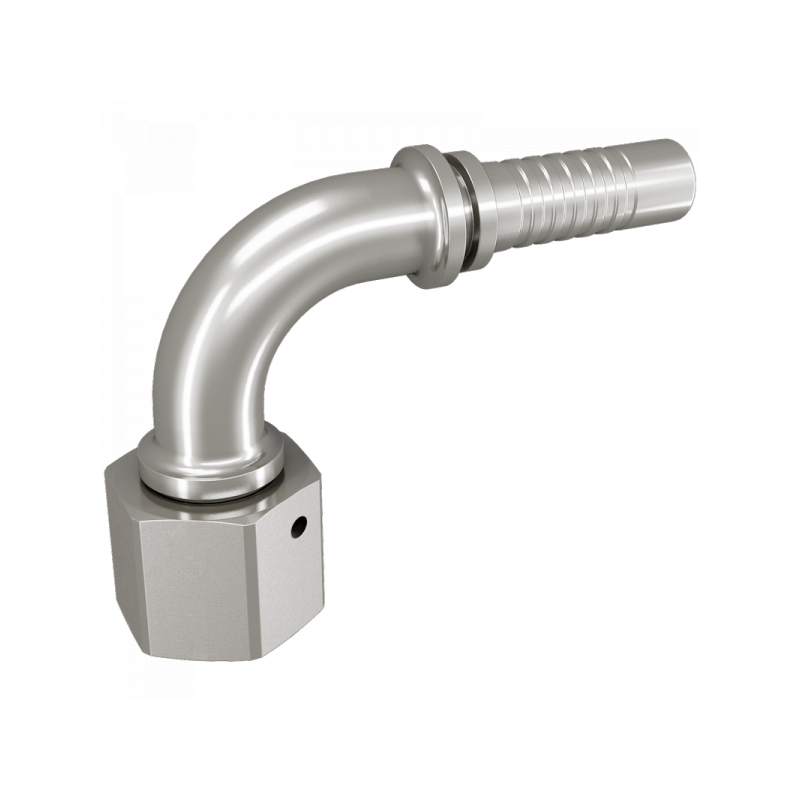

DKJ-90°:

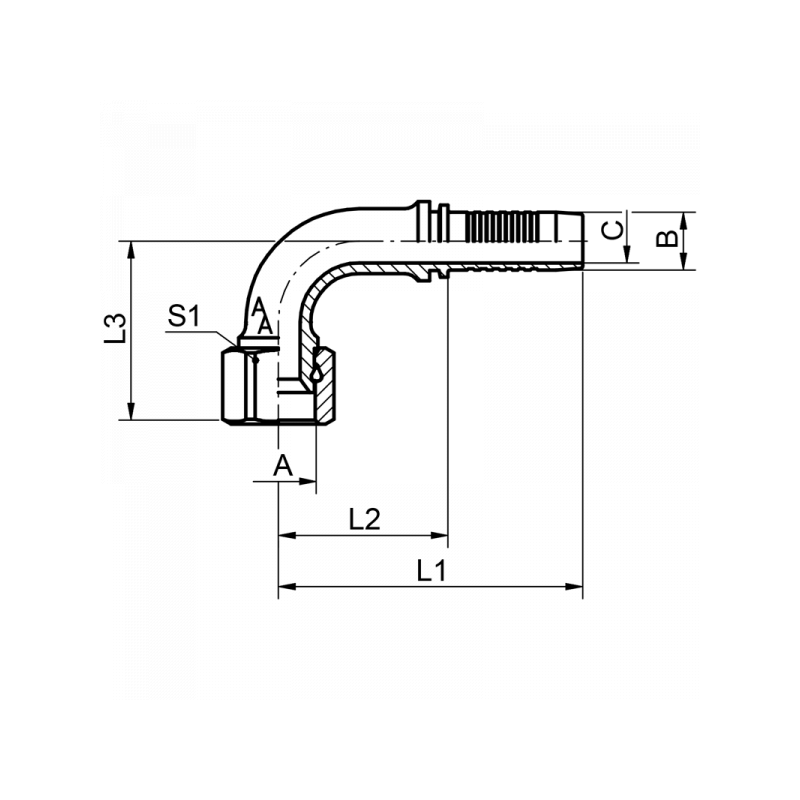

AB / mmDNL1 / mmL2 / mmL3 / mmS1C / mmMaterialArt.Nr.PDF
7/16-20UNF6,76572727173,91.45714292DN06U7/16
9/16-18UNF6,76572735193,91.45714292DN06U9/16
1/2-20UNF88603035195,41.45714292DN08U1/2
9/16-18UNF88603035195,41.45714292DN08U9/16
9/16-18UNF9,6107541,732196,51.45714292DN10U9/16
3/4-16UNF12,8127842,740229,51.45714292DN12U3/4
7/8-14UNF12,8127842,740279,51.45714292DN12U7/8
7/8-14UNF16168445,7522712,61.45714292DN16U7/8
1 1/16-12UN19,12011064,2613214,81.45714292DN20U11/16
1 5/16-12UN25,9251349575,54120,01.45714292DN25U15/16
1 5/8-12UN32,53215898,2935026,01.45714292DN32U15/8
1 7/8-12UN38,940180112,51136031,01.45714292DN40U17/8
