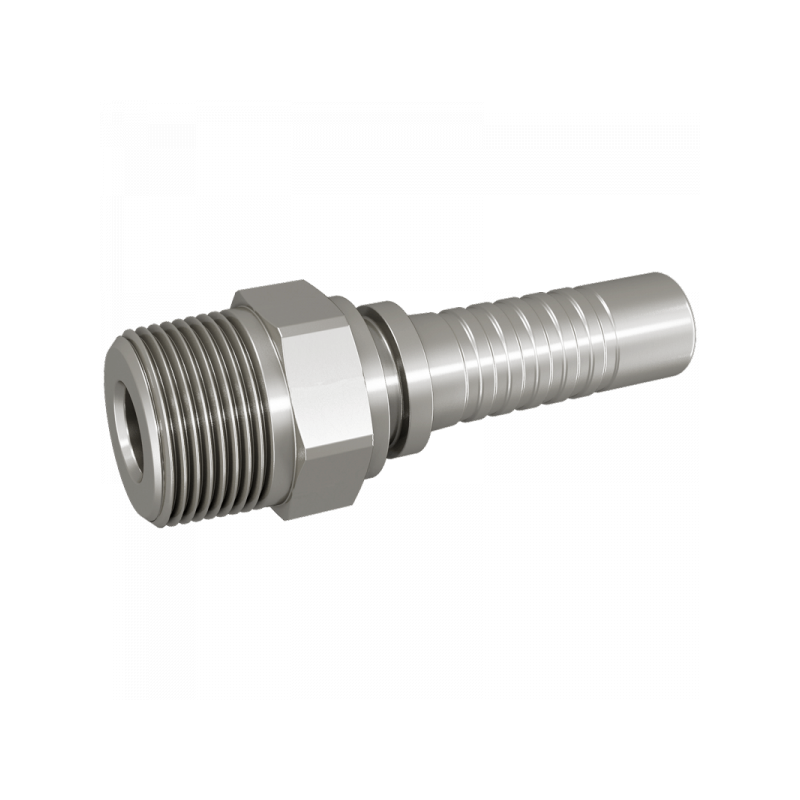

AGR-K:
| A | B / mm | DN | L1 / mm | L2 / mm | S1 | C / mm | Material | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|---|
| R1/4keg | 6,7 | 6 | 56 | 26 | 14 | 3,9 | 1.4571 | 4725DN06 | |
| R1/8keg | 6,7 | 6 | 51,7 | 21,7 | 12 | 3,9 | 1.4571 | 4725DN06G01 | |
| R3/8keg | 8 | 8 | 56,6 | 26,6 | 17 | 5,4 | 1.4571 | 4725DN08 | |
| R1/4keg | 8 | 8 | 56 | 26 | 14 | 5,4 | 1.4571 | 4725DN08G02 | |
| R3/8keg | 9,6 | 10 | 59,8 | 26,5 | 17 | 6,5 | 1.4571 | 4725DN10 | |
| R1/4keg | 9,6 | 10 | 58,8 | 25,5 | 14 | 6,5 | 1.4571 | 4725DN10G02 | |
| R1/2keg | 12,8 | 12 | 65,6 | 30,3 | 22 | 9,5 | 1.4571 | 4725DN12 | |
| R3/4keg | 16 | 16 | 72,6 | 34,3 | 27 | 12,6 | 1.4571 | 4725DN16 | |
| R3/4keg | 19,1 | 20 | 80,6 | 34,8 | 27 | 14,8 | 1.4571 | 4725DN20 | |
| R1keg | 19,1 | 20 | 82,6 | 36,8 | 36 | 14,8 | 1.4571 | 4725DN20G08 | |
| R1keg | 25,9 | 25 | 93 | 38 | 36 | 20,0 | 1.4571 | 4725DN25 | |
| R1 1/4keg | 32,5 | 32 | 103 | 43,2 | 46 | 26,0 | 1.4571 | 4725DN32 | |
| R1 1/2keg | 38,9 | 40 | 115 | 47,5 | 50 | 31,0 | 1.4571 | 4725DN40 | |
| R2keg | 51,6 | 50 | 129 | 54 | 65 | 40,0 | 1.4571 | 4725DN50 |
