AGN:

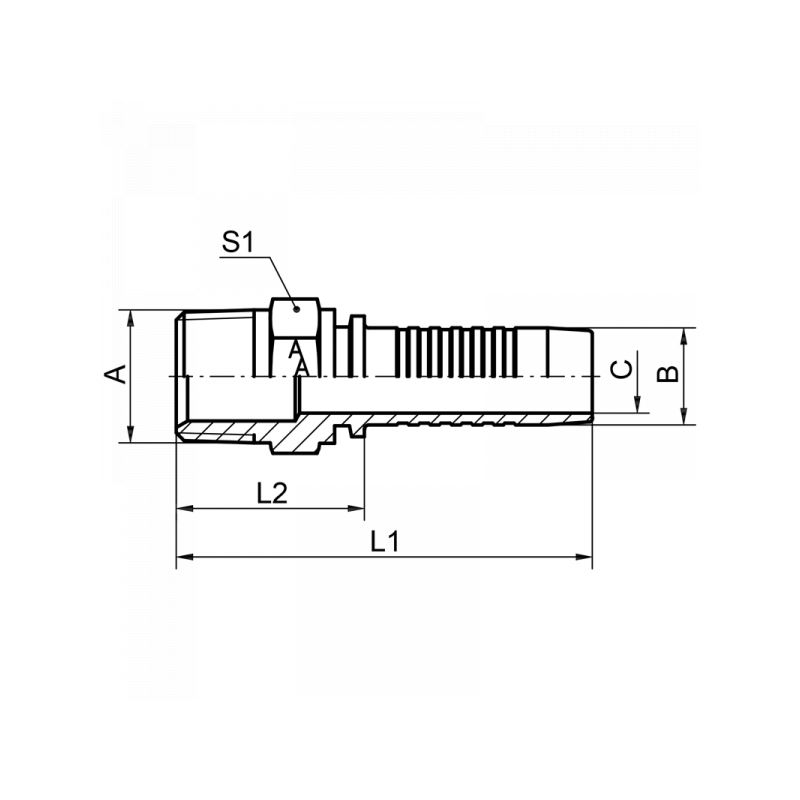

A B / mm DN L1 / mm L2 / mm S1 C / mm Material Art.Nr. PDF
1/4NPT 6,7 6 58 28 14 3,9 1.4571 4740DN06
1/8NPT 6,7 6 53,2 23,3 12 3,9 1.4571 4740DN06N01
3/8NPT 9,6 10 62,1 28,8 19 6,5 1.4571 4740DN10
1/2NPT 9,6 10 67,9 34,6 22 6,5 1.4571 4740DN10N04
1/2NPT 12,8 12 70,6 35,3 22 9,5 1.4571 4740DN12
3/4NPT 16 16 75,6 37,3 27 12,6 1.4571 4740DN16
1/2NPT 16 16 74,7 36,4 22 12,6 1.4571 4740DN16N04
3/4NPT 19,1 20 83,6 37,8 27 14,8 1.4571 4740DN20
1NPT 19,1 20 88,6 42,8 36 14,8 1.4571 4740DN20N08
1NPT 25,9 25 99 44 36 20,0 1.4571 4740DN25
1 1/4NPT 32,5 32 107 47,2 46 26,0 1.4571 4740DN32
1 1/2NPT 38,9 40 118,5 51 50 31,0 1.4571 4740DN40
2NPT 51,6 50 132 57 65 40,0 1.4571 4740DN50
