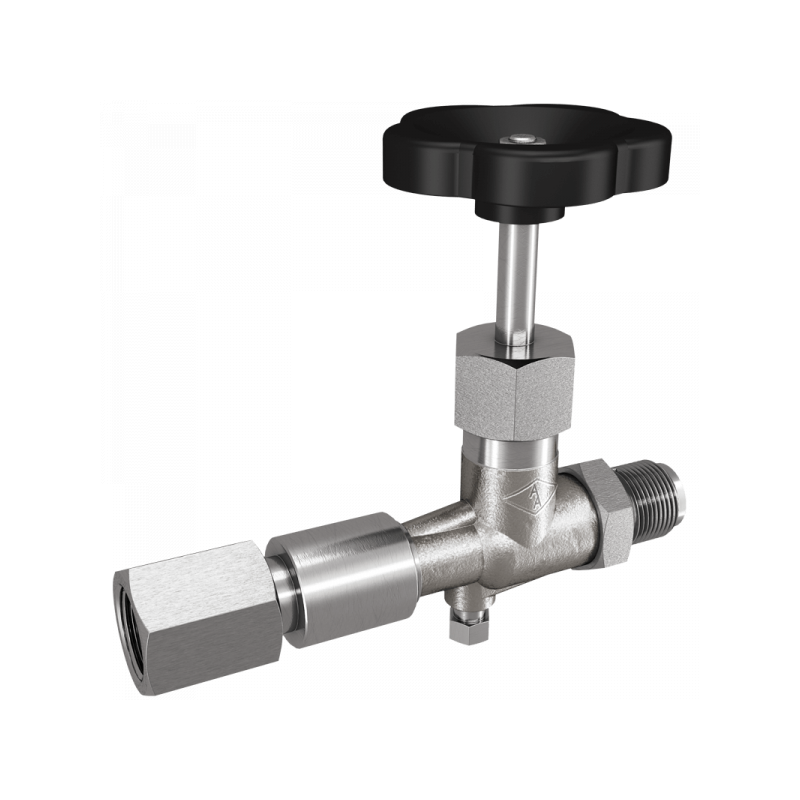

Fig. 60/B:

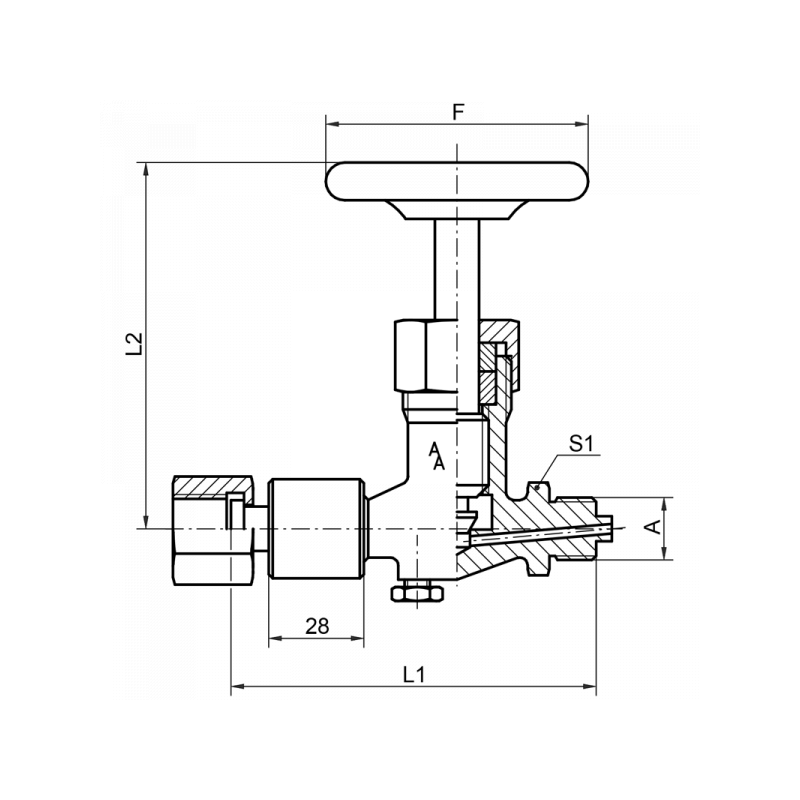

DIN A PN / Bar L1 / mm L2 / mm F / mm S1 Material Art.Nr. PDF
DIN 16270 B G1/2 400 -10°C / +120°C 120 94 63 27 1.0460 10060B042
DIN 16270 B G1/2 400 -10°C / +200°C 120 94 63 27 1.4571 10060B043
DIN 16270 B G1/2 250 -10°C / +120°C 125 100 63 27 ganz Messing 10060B041GM
