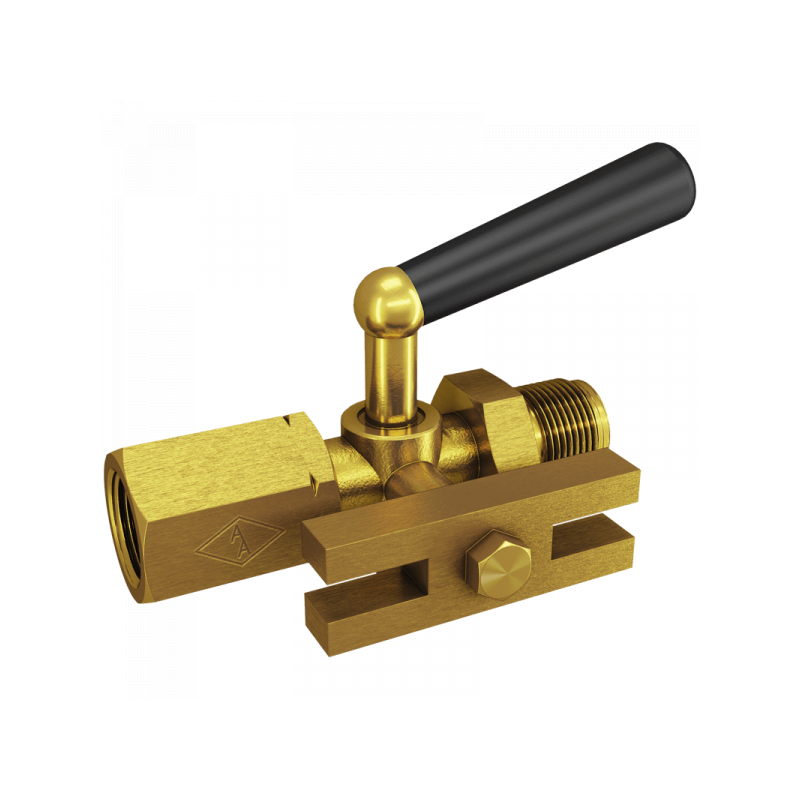

Fig. 31:
![](index.php?rex_media_type=rex_article_image&rex_media_file=10031031s.png)
![](index.php?rex_media_type=rex_article_image&rex_media_file=10031031ss.png)
A | PN / Bar | C° | L1 / mm | L2 / mm | S1 | Flansch / mm | Material | Art.Nr. | |
---|---|---|---|---|---|---|---|---|---|
G3/8 | 25 | -10°C / +50°C | 74 | 38 | 27 | 60x25 | Messing | 10031031S | |
G1/2 | 25 | -10°C / +50°C | 78,5 | 38 | 27 | 60x25 | Messing | 10031041 |
A | PN / Bar | C° | L1 / mm | L2 / mm | S1 | Flansch / mm | Material | Art.Nr. | |
---|---|---|---|---|---|---|---|---|---|
G3/8 | 25 | -10°C / +50°C | 74 | 38 | 27 | 60x25 | Messing | 10031031S | |
G1/2 | 25 | -10°C / +50°C | 78,5 | 38 | 27 | 60x25 | Messing | 10031041 |
