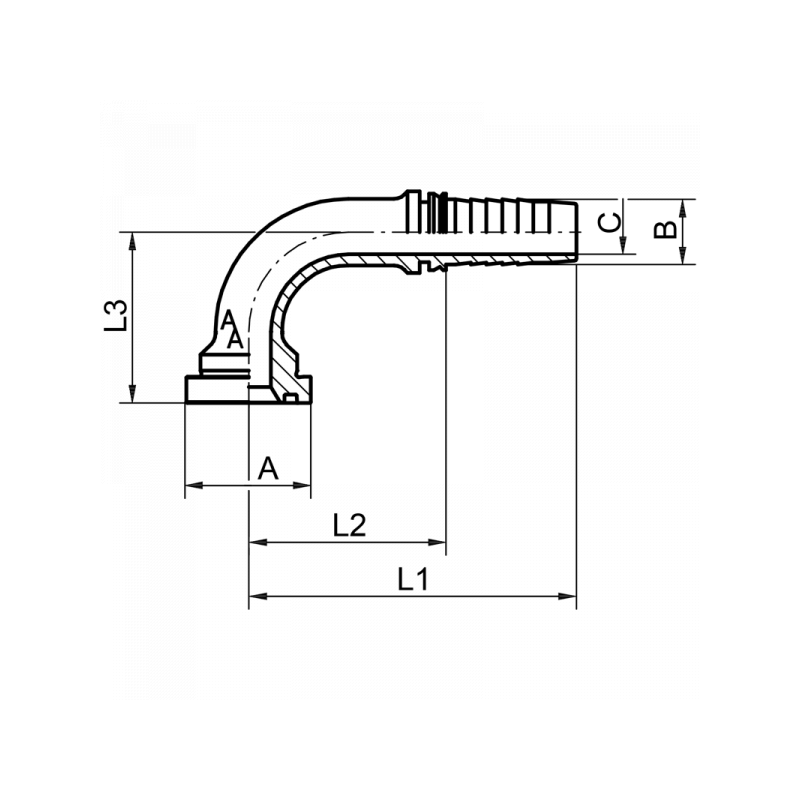

SFS-4SH-90°:

A B / mm DN L1 / mm L2 / mm L3 / mm C / mm Material Art.Nr. PDF
3/4-41,3 19,7 20 133 86 69,0 14,0 1.4571 8762DN20
1-47,6 26 25 158 102 80,0 20,0 1.4571 8762DN25
1 1/4-54,0 32,2 32 179 112 104,5 24,0 1.4571 8762DN32
1 1/2-63,5 38,7 40 199,5 127,5 120,0 30,0 1.4571 8762DN40
