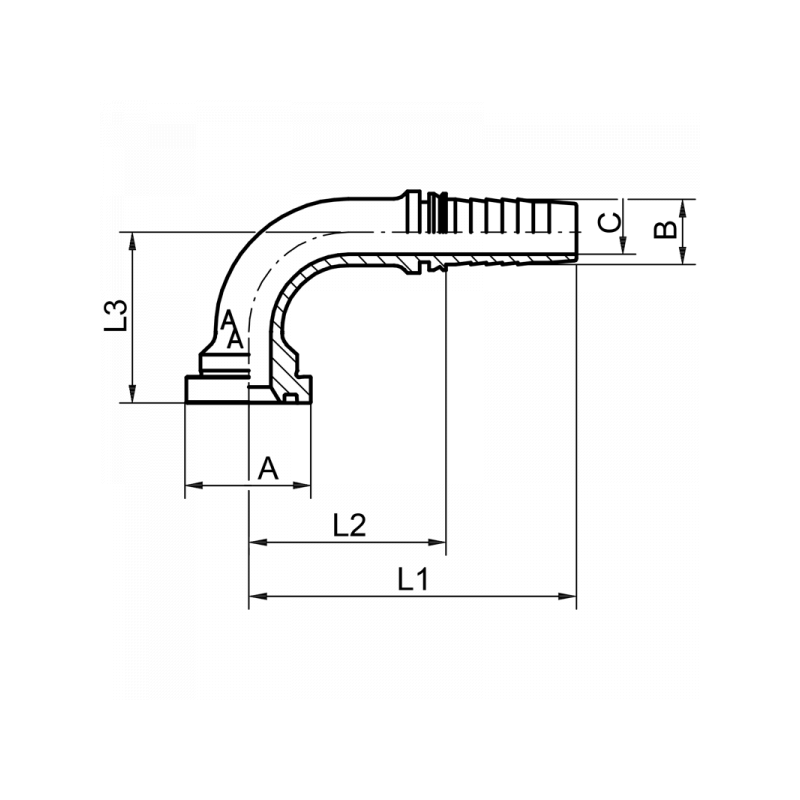

SFS-4SH-90°:
| A | B / mm | DN | L1 / mm | L2 / mm | L3 / mm | C / mm | Material | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|---|
| 3/4-41,3 | 19,7 | 20 | 133 | 86 | 69,0 | 14,0 | 1.4571 | 8762DN20 | |
| 1-47,6 | 26 | 25 | 158 | 102 | 80,0 | 20,0 | 1.4571 | 8762DN25 | |
| 1 1/4-54,0 | 32,2 | 32 | 179 | 112 | 104,5 | 24,0 | 1.4571 | 8762DN32 | |
| 1 1/2-63,5 | 38,7 | 40 | 199,5 | 127,5 | 120,0 | 30,0 | 1.4571 | 8762DN40 |
