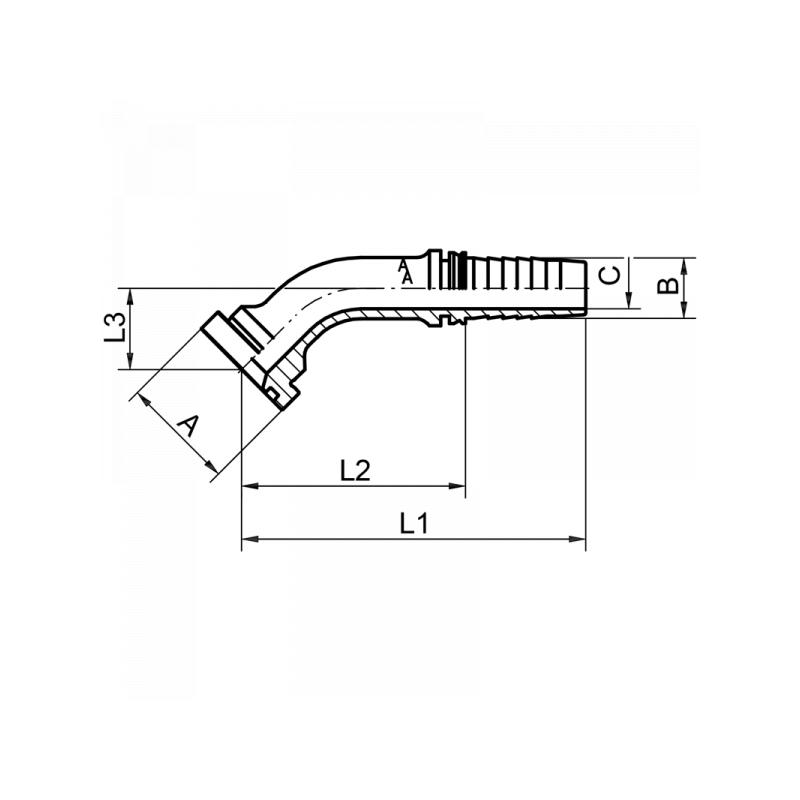

SFS-4SH-45°:

A B / mm DN L1 / mm L2 / mm L3 / mm C / mm Material Art.Nr. PDF
1 1/4-54,0 32,2 32 240,5 192,5 48,0 24,0 1.4571 8761DN32
1 1/2-63,5 38,7 40 275 203 50,0 30,0 1.4571 8761DN40
