SFL-4SH-90°:
| A | B / mm | DN | L1 / mm | L2 / mm | L3 / mm | C / mm | Material | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|---|
| 3/4-38,1 | 19,7 | 20 | 134,5 | 87,5 | 67,0 | 14,0 | 1.4571 | 8752DN20 | |
| 1-44,5 | 26 | 25 | 154,7 | 98,7 | 85,0 | 20,0 | 1.4571 | 8752DN25 | |
| 1 1/2-60,3 | 38,7 | 40 | 199 | 127 | 108,0 | 30,0 | 1.4571 | 8752DN40 | |
| 2-71,3 | 51,6 | 50 | 215 | 145 | 106,0 | 40,0 | 1.4571 | 8752DN50 |
Related articles
8000

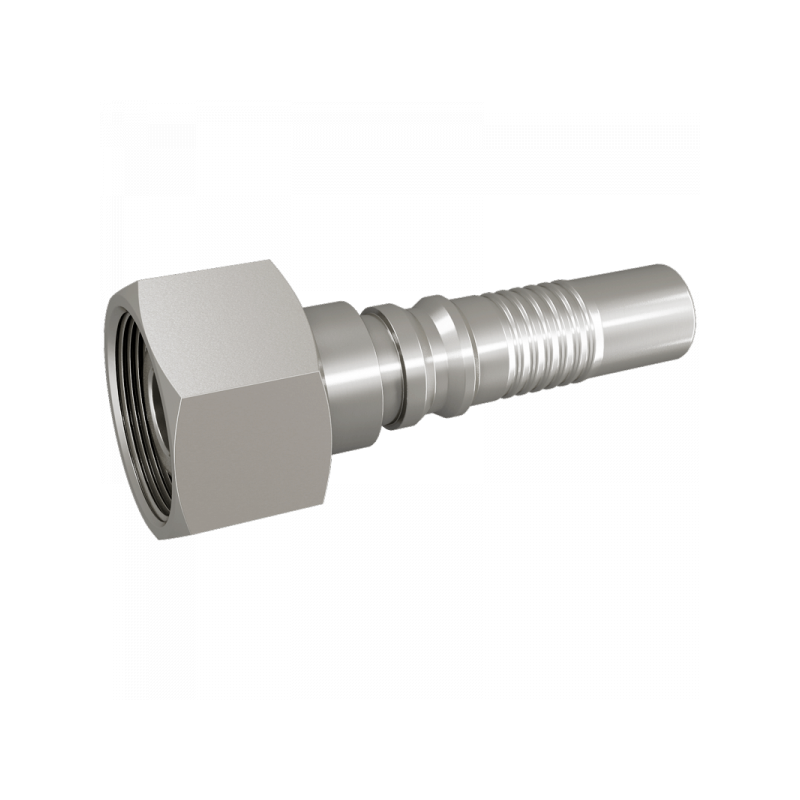

DKOS-4SH

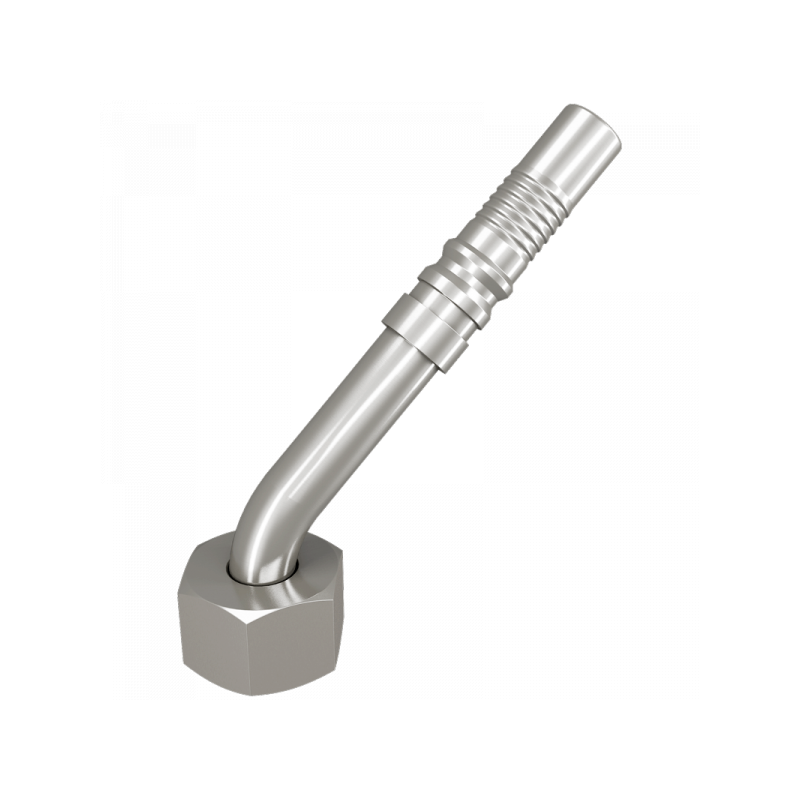

DKOS-4SH-45°
