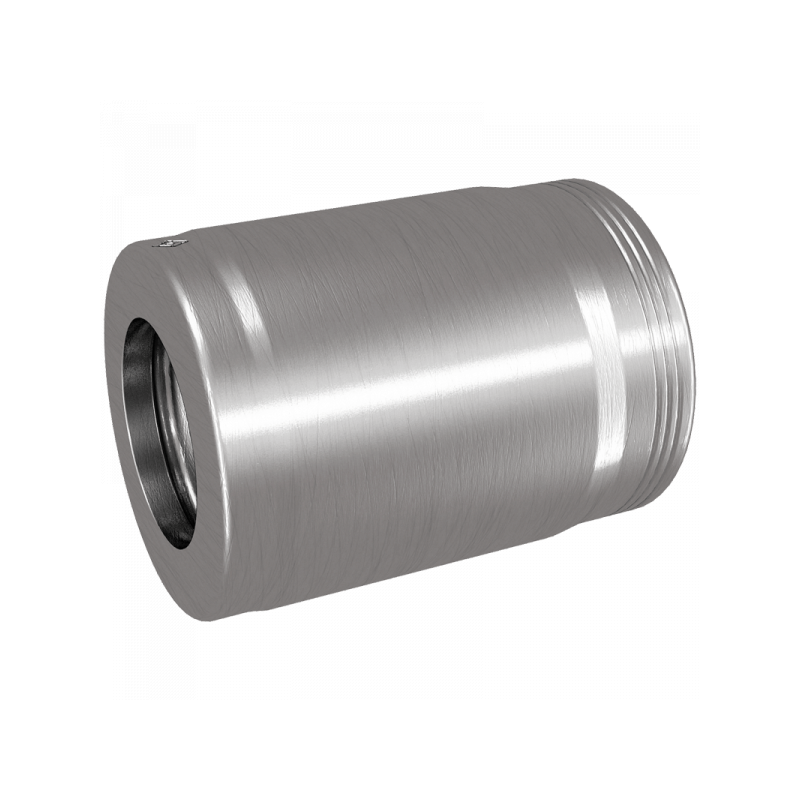

4030:
| A / mm | B / mm | L1 / mm | L2 / mm | Material | DN | C / mm | Art.Nr. | |
|---|---|---|---|---|---|---|---|---|
| 11,0 | 22,0 | 34,0 | 2,5 | 1.4571 | 6 | 15,5 | 4030DN06 | |
| 12,1 | 23,0 | 31,0 | 2,5 | 1.4571 | 8 | 17,2 | 4030DN08 | |
| 14,2 | 26,0 | 38,0 | 2,5 | 1.4571 | 10 | 19,5 | 4030DN10 | |
| 18,5 | 30,0 | 40,0 | 2,5 | 1.4571 | 12 | 22,2 | 4030DN12 | |
| 21,6 | 33,6 | 40,0 | 2,5 | 1.4571 | 16 | 26,4 | 4030DN16 | |
| 24,6 | 39,0 | 50,0 | 3,0 | 1.4571 | 20 | 30,2 | 4030DN20 | |
| 30,9 | 45,5 | 60,0 | 3,7 | 1.4571 | 25 | 37,3 | 4030DN25 | |
| 38,8 | 58,0 | 70,0 | 4,0 | 1.4571 | 32 | 46,8 | 4030DN32 | |
| 44,2 | 65,0 | 73,0 | 4,3 | 1.4571 | 40 | 53,7 | 4030DN40 | |
| 57,3 | 78,0 | 80,0 | 4,3 | 1.4571 | 50 | 66,6 | 4030DN50 |
