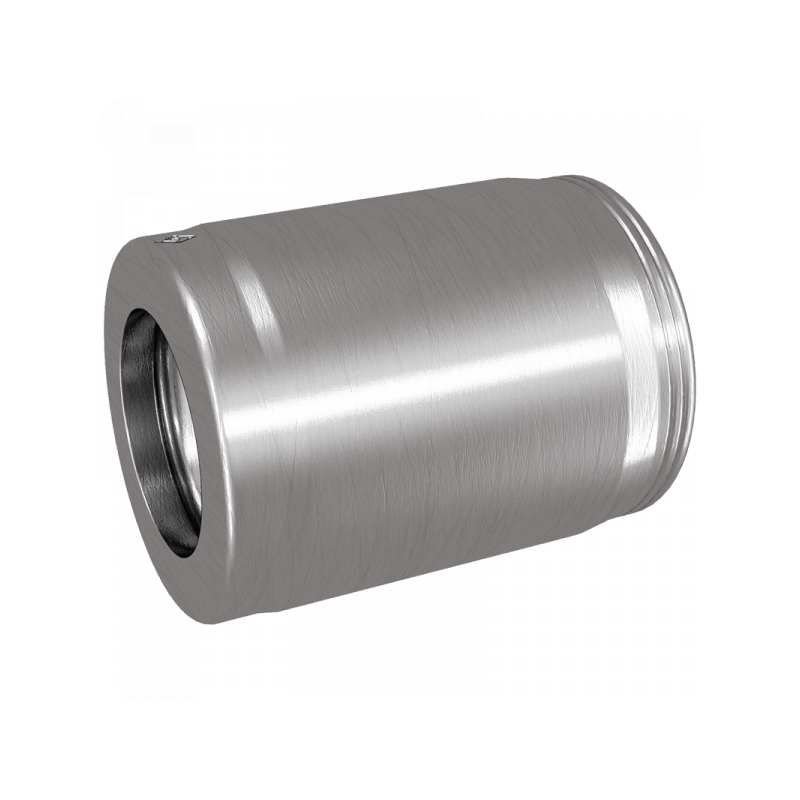

4020:

A / mm B / mm DN L1 / mm L2 / mm C / mm Material Art.Nr. PDF
11,0 20 6 31 2,5 13,2 1.4571 4020DN06
12,6 20 8 31 2,5 15,5 1.4571 4020DN08
14,1 23,6 10 33 2,5 16,6 1.4571 4020DN10
17,6 27 12 35 2,5 19,5 1.4571 4020DN12
21,6 31 16 38 2,5 23,0 1.4571 4020DN16
24,5 35 20 44 3 26,8 1.4571 4020DN20
30,4 42 25 52 3,7 34,1 1.4571 4020DN25
44,4 62 40 68 4,3 51,3 1.4571 4020DN40
56,7 75 50 80 4,3 64,0 1.4571 4020DN50
