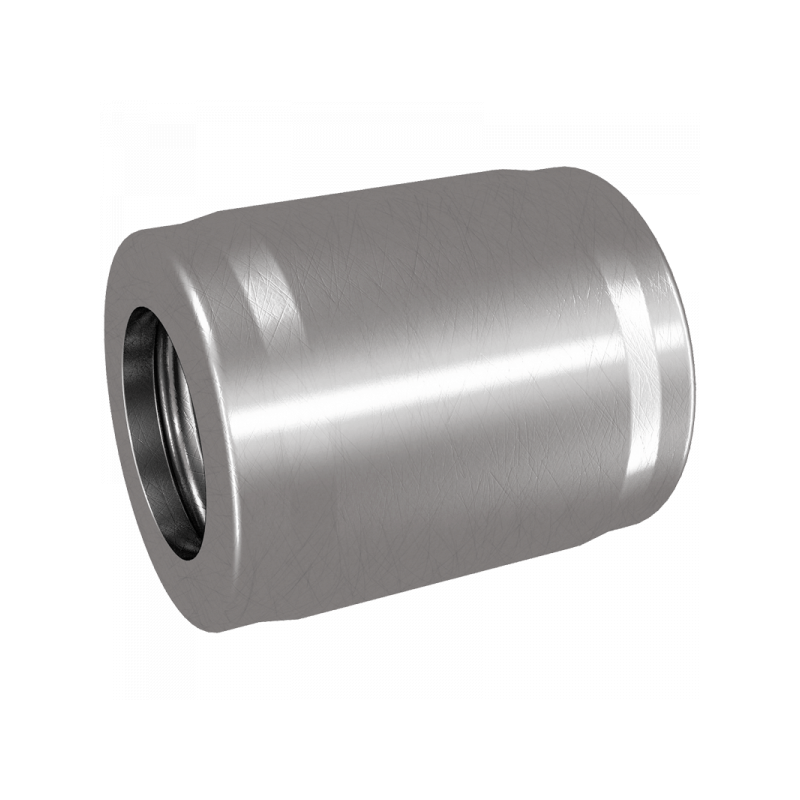

4010:

A / mm B / mm DN L1 / mm L2 / mm C / mm Material Art.Nr. PDF
11,3 21 6 31 2,5 15,7 1.4571 4010DN06
12,7 22,5 8 31 2,5 17,3 1.4571 4010DN08
15,0 26,5 10 33 2,5 19,8 1.4571 4010DN10
18,3 30 12 36 2,5 23,0 1.4571 4010DN12
22,0 34 16 38 2,5 26,2 1.4571 4010DN16
25,0 38 20 44 3 30,1 1.4571 4010DN20
32,3 47 25 52 3,7 38,8 1.4571 4010DN25
40,0 57 32 60 4 49,3 1.4571 4010DN32
46,6 65 40 73 4,3 55,8 1.4571 4010DN40
58,9 78 50 80 4,3 68,5 1.4571 4010DN50
