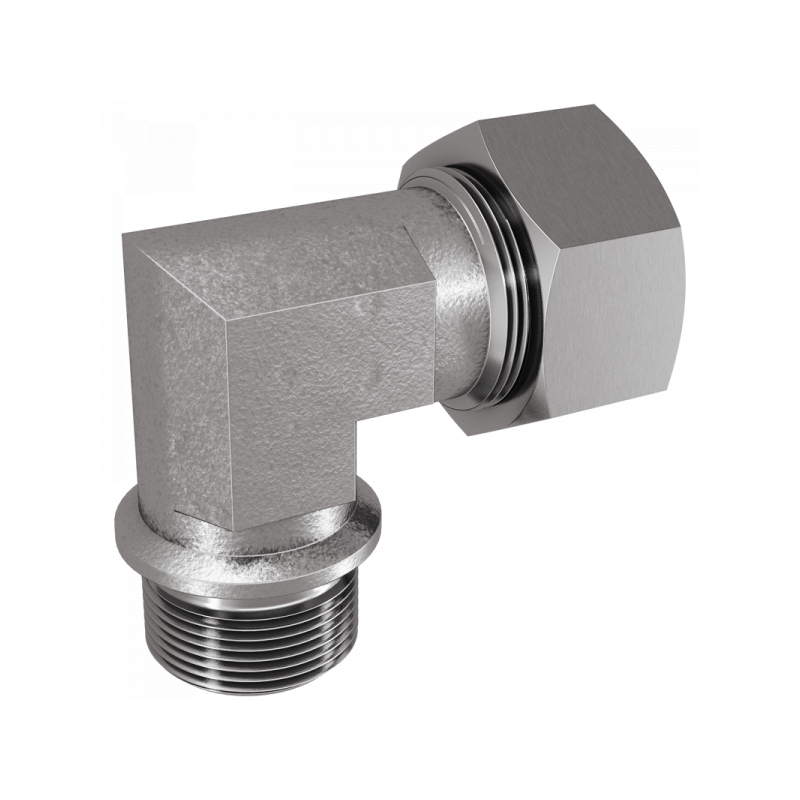

WE-LM/SM:

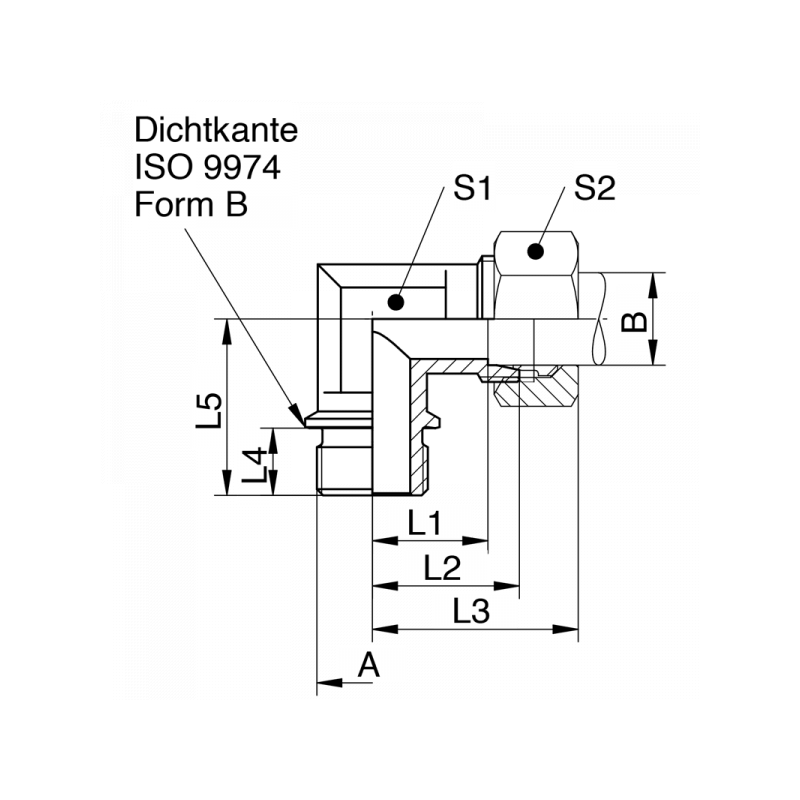

A B PN / Bar L1 / mm L2 / mm L3 / mm L4 / mm L5 / mm S1 S2 Material Art.Nr. Stutzen PDF
M33x2 28 160 30,5 38 52 18 48 36 41 1.4571 WE28LM33  XWE28LM33
M42x2 35 160 34,5 45 61 20 54 41 50 1.4571 WE35LM42  XWE35LM42
M48x2 42 160 40 51 67 22 61 50 60 1.4571 WE42LM48  XWE42LM48
M27x2 20 400 26,5 37 52 16 42 27 36 1.4571 WE20SM27  XWE20SM27
M33x2 25 400 30 42 58 18 48 36 46 1.4571 WE25SM33  XWE25SM33
M42x2 30 400 35,5 49 65 20 54 41 50 1.4571 WE30SM42  XWE30SM42
M48x2 38 250 41 57 76 22 61 50 60 1.4571 WE38SM48  XWE38SM48
