WE-LR-KEG:

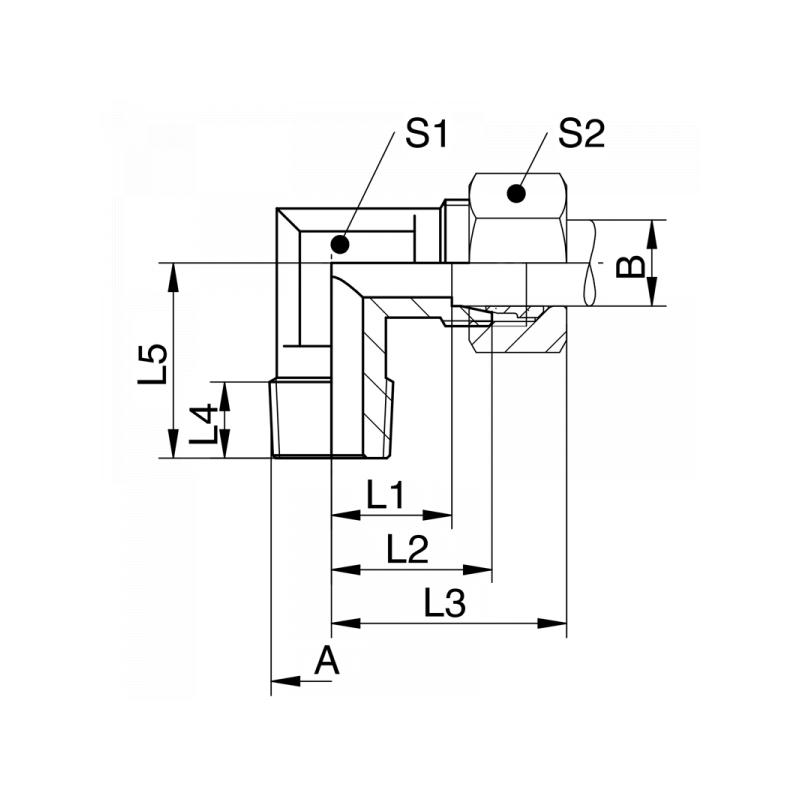

| A | B | PN / Bar | L1 / mm | L2 / mm | L3 / mm | L4 / mm | L5 / mm | S1 | S2 | Material | Art.Nr. | Stutzen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1/8keg | 06 | 315 | 12 | 19 | 29 | 8 | 20 | 12 | 14 | 1.4571 | WE06LK01 | XWE06LK01 | |
| R1/4keg | 06 | 315 | 14 | 21 | 31 | 12 | 26 | 12 | 14 | 1.4571 | WE06LK02 | XWE06LK02 | |
| R3/8keg | 06 | 315 | 17,5 | 25 | 35 | 12 | 28 | 17 | 14 | 1.4571 | WE06LK03 | XWE06LK03 | |
| R1/8keg | 08 | 315 | 14 | 21 | 31 | 8 | 26 | 12 | 17 | 1.4571 | WE08LK01 | XWE08LK01 | |
| R1/4keg | 08 | 315 | 14 | 21 | 31 | 12 | 26 | 12 | 17 | 1.4571 | WE08LK02 | XWE08LK02 | |
| R3/8keg | 08 | 315 | 17 | 24 | 34 | 12 | 28 | 17 | 17 | 1.4571 | WE08LK03 | XWE08LK03 | |
| R1/2keg | 08 | 315 | 20 | 27 | 37 | 14 | 32 | 17 | 17 | 1.4571 | WE08LK04 | XWE08LK04 | |
| R1/8keg | 10 | 315 | 18 | 25 | 35 | 8 | 21 | 14 | 19 | 1.4571 | WE10LK01 | XWE10LK01 | |
| R1/4keg | 10 | 315 | 15 | 22 | 33 | 12 | 27 | 14 | 19 | 1.4571 | WE10LK02 | XWE10LK02 | |
| R3/8keg | 10 | 315 | 17 | 24 | 35 | 12 | 28 | 17 | 19 | 1.4571 | WE10LK03 | XWE10LK03 | |
| R1/2keg | 10 | 315 | 21 | 28 | 39 | 14 | 32 | 17 | 19 | 1.4571 | WE10LK04 | XWE10LK04 | |
| R1/8keg | 12 | 315 | 17 | 24 | 35 | 8 | 28 | 17 | 22 | 1.4571 | WE12LK01 | XWE12LK01 | |
| R1/4keg | 12 | 315 | 17 | 24 | 35 | 12 | 28 | 17 | 22 | 1.4571 | WE12LK02 | XWE12LK02 | |
| R3/8keg | 12 | 315 | 17 | 24 | 35 | 12 | 28 | 17 | 22 | 1.4571 | WE12LK03 | XWE12LK03 | |
| R1/2keg | 12 | 315 | 21 | 28 | 39 | 14 | 34 | 17 | 22 | 1.4571 | WE12LK04 | XWE12LK04 | |
| R1/4keg | 15 | 315 | 21 | 28 | 39 | 12 | 30 | 19 | 27 | 1.4571 | WE15LK02 | XWE15LK02 | |
| R3/8keg | 15 | 315 | 21 | 28 | 39 | 12 | 34 | 19 | 27 | 1.4571 | WE15LK03 | XWE15LK03 | |
| R1/2keg | 15 | 315 | 21 | 28 | 39 | 14 | 34 | 19 | 27 | 1.4571 | WE15LK04 | XWE15LK04 | |
| R3/8keg | 18 | 315 | 22,5 | 30 | 42 | 12 | 35 | 24 | 32 | 1.4571 | WE18LK03 | XWE18LK03 | |
| R1/2keg | 18 | 315 | 23,5 | 31 | 43 | 14 | 36 | 24 | 32 | 1.4571 | WE18LK04 | XWE18LK04 | |
| R3/4keg | 18 | 315 | 23,5 | 31 | 43 | 16 | 37 | 27 | 32 | 1.4571 | WE18LK06 | XWE18LK06 | |
| R1/2keg | 22 | 160 | 27,5 | 35 | 47 | 14 | 40 | 27 | 36 | 1.4571 | WE22LK04 | XWE22LK04 | |
| R1keg | 22 | 160 | 28,5 | 36 | 48 | 18 | 46 | 36 | 36 | 1.4571 | WE22LK08 | XWE22LK08 | |
| R3/4keg | 28 | 160 | 30,5 | 38 | 52 | 16 | 48 | 36 | 41 | 1.4571 | WE28LK06 | XWE28LK06 | |
| R1keg | 28 | 160 | 30,5 | 38 | 52 | 18 | 48 | 36 | 41 | 1.4571 | WE28LK08 | XWE28LK08 |
Related articles

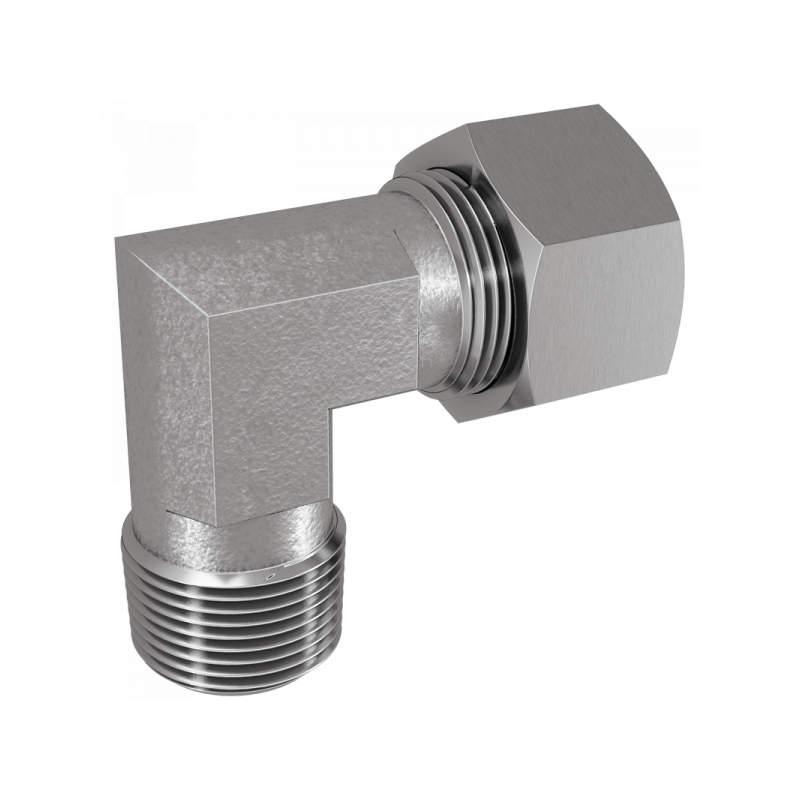

WE-LM/SM-KEG
WE-LR-NPT

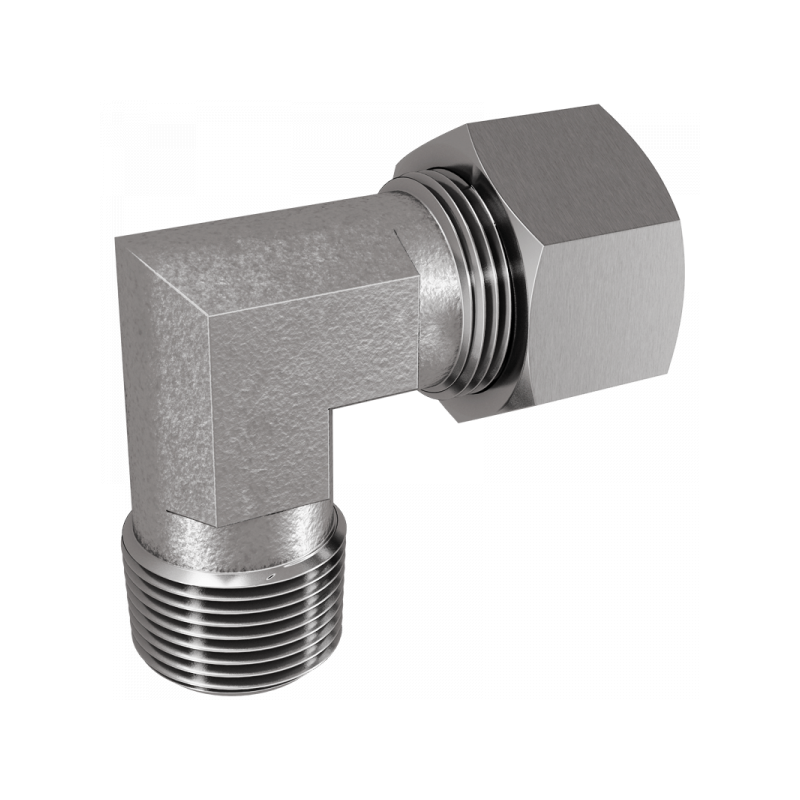

WE-SR-KEG
