WE-SR-KEG:
| A | B | PN / Bar | L1 / mm | L2 / mm | L3 / mm | L4 / mm | L5 / mm | S1 | S2 | Material | Art.Nr. | Stutzen | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1/4keg | 06 | 630 | 16 | 23 | 33 | 12 | 26 | 12 | 17 | 1.4571 | WE06SK02 | XWE06SK02 | |
| R3/8keg | 06 | 630 | 18 | 25 | 35 | 12 | 28 | 17 | 17 | 1.4571 | WE06SK03 | XWE06SK03 | |
| R1/2keg | 06 | 630 | 23 | 30 | 40 | 14 | 32 | 17 | 17 | 1.4571 | WE06SK04 | XWE06SK04 | |
| R1/8keg | 08 | 630 | 17 | 24 | 34 | 8 | 27 | 14 | 19 | 1.4571 | WE08SK01 | XWE08SK01 | |
| R1/4keg | 08 | 630 | 17 | 24 | 34 | 12 | 27 | 14 | 19 | 1.4571 | WE08SK02 | XWE08SK02 | |
| R3/8keg | 08 | 630 | 18 | 25 | 35 | 12 | 28 | 17 | 19 | 1.4571 | WE08SK03 | XWE08SK03 | |
| R1/2keg | 08 | 630 | 23 | 30 | 40 | 14 | 34 | 17 | 19 | 1.4571 | WE08SK04 | XWE08SK04 | |
| R1/4keg | 10 | 630 | 17,5 | 25 | 37 | 12 | 28 | 17 | 22 | 1.4571 | WE10SK02 | XWE10SK02 | |
| R3/8keg | 10 | 630 | 17,5 | 25 | 37 | 12 | 28 | 17 | 22 | 1.4571 | WE10SK03 | XWE10SK03 | |
| R1/2keg | 10 | 630 | 22,5 | 30 | 42 | 14 | 32 | 17 | 22 | 1.4571 | WE10SK04 | XWE10SK04 | |
| R1/4keg | 12 | 630 | 21,5 | 29 | 41 | 12 | 29 | 17 | 24 | 1.4571 | WE12SK02 | XWE12SK02 | |
| R3/8keg | 12 | 630 | 21,5 | 29 | 41 | 12 | 28 | 17 | 24 | 1.4571 | WE12SK03 | XWE12SK03 | |
| R1/2keg | 12 | 630 | 22,5 | 30 | 42 | 14 | 32 | 17 | 24 | 1.4571 | WE12SK04 | XWE12SK04 | |
| R1/2keg | 14 | 630 | 22 | 30 | 42 | 14 | 32 | 19 | 27 | 1.4571 | WE14SK04 | XWE14SK04 | |
| R3/8keg | 16 | 400 | 23,5 | 32 | 45 | 12 | 32 | 24 | 30 | 1.4571 | WE16SK03 | XWE16SK03 | |
| R1/2keg | 16 | 400 | 24,5 | 33 | 46 | 14 | 32 | 24 | 30 | 1.4571 | WE16SK04 | XWE16SK04 | |
| R1/2keg | 20 | 400 | 26,5 | 37 | 52 | 14 | 37 | 27 | 36 | 1.4571 | WE20SK04 | XWE20SK04 | |
| R3/4keg | 20 | 400 | 25,5 | 36 | 51 | 16 | 42 | 27 | 36 | 1.4571 | WE20SK06 | XWE20SK06 | |
| R3/4keg | 25 | 400 | 30 | 42 | 58 | 16 | 46 | 36 | 46 | 1.4571 | WE25SK06 | XWE25SK06 |
Related articles

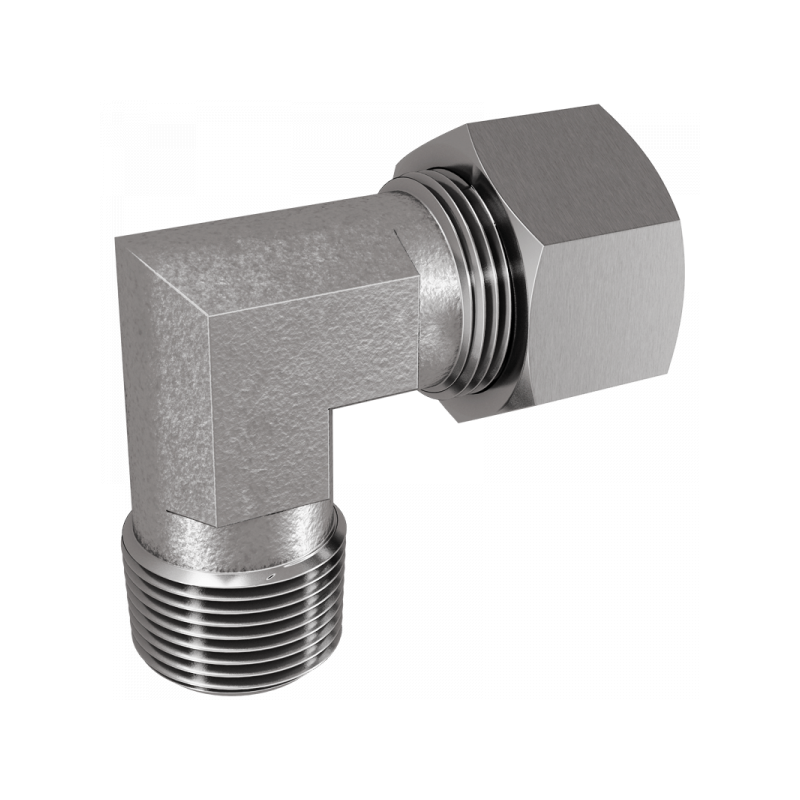

WE-LR-KEG

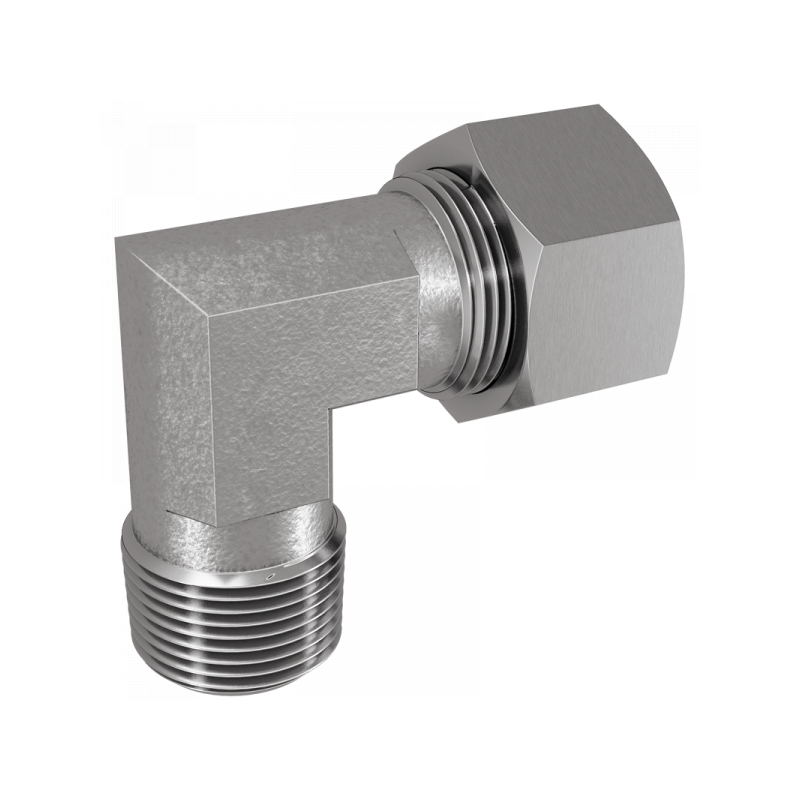

WE-LM/SM-KEG

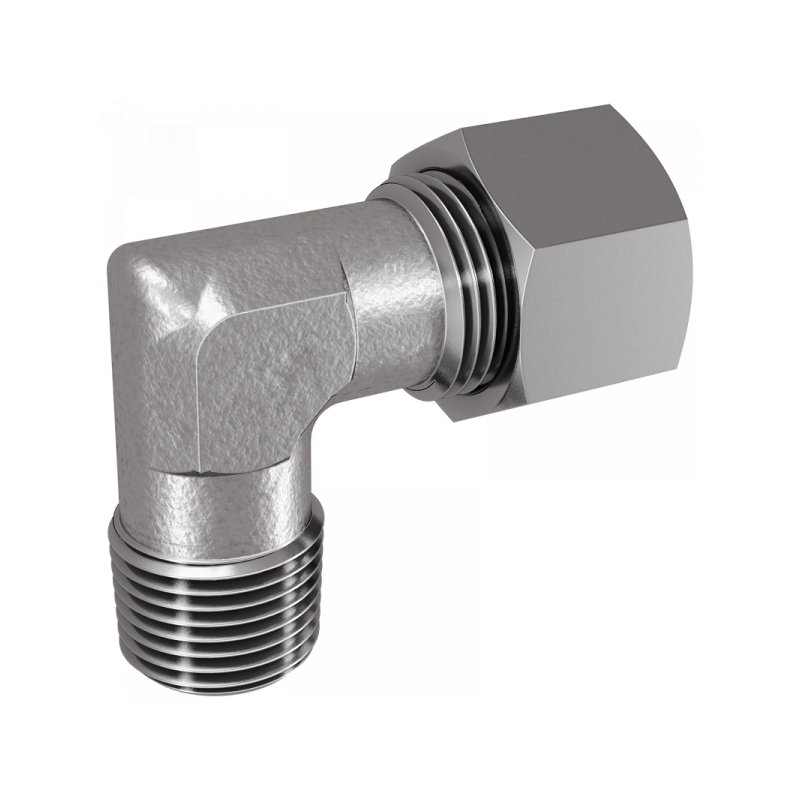

WE-LR-NPT
