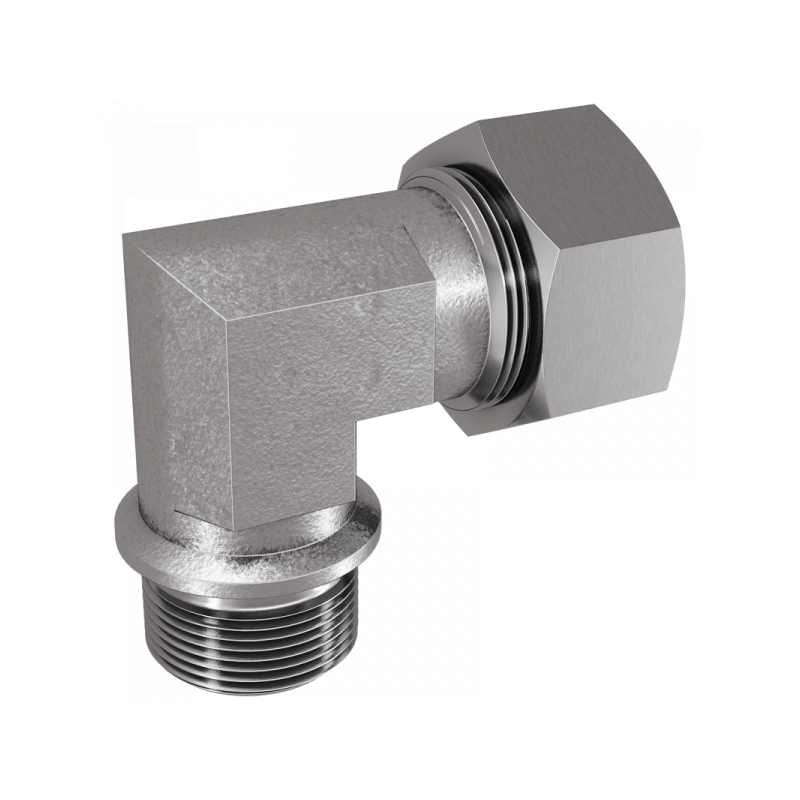

WE-LR/SR:

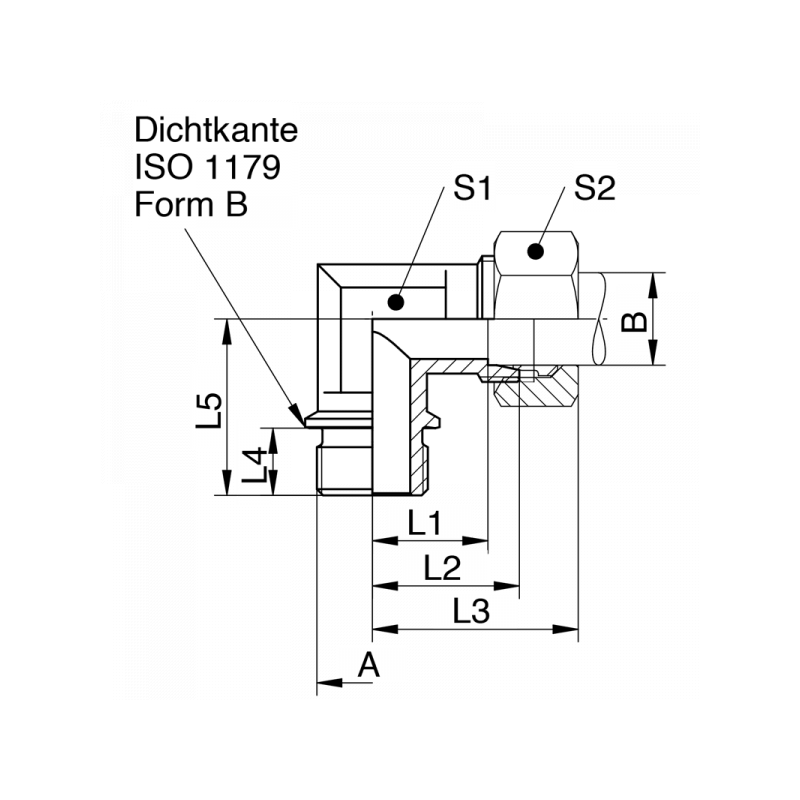

A B PN / Bar L1 / mm L2 / mm L3 / mm L4 / mm L5 / mm S1 S2 Material Art.Nr. Stutzen PDF
G3/4 22 160 27,5 35 47 16 42 27 36 1.4571 WE22L06  XWE22L06
G1 28 160 30,5 38 52 18 48 36 41 1.4571 WE28L08  XWE28L08
G1 1/4 35 160 34,5 45 61 20 54 41 50 1.4571 WE35L10  XWE35L10
G1 1/2 35 160 43,5 54 70 22 55 50 50 1.4571 WE35L12  XWE35L12
G1 1/4 42 160 39 50 66 20 60 50 60 1.4571 WE42L10  XWE42L10
G1 1/2 42 160 40 51 67 22 61 50 60 1.4571 WE42L12  XWE42L12
G3/4 20 400 26,5 37 52 16 42 27 36 1.4571 WE20S06  XWE20S06
G3/4 25 400 30 42 58 16 46 36 46 1.4571 WE25S06  XWE25S06
G1 25 400 30 42 58 18 48 36 46 1.4571 WE25S08  XWE25S08
G1 30 400 34,5 48 64 18 54 41 50 1.4571 WE30S08  XWE30S08
G1 1/4 30 400 35,5 49 65 20 54 41 50 1.4571 WE30S10  XWE30S10
G1 1/2 38 250 41 57 76 22 61 50 60 1.4571 WE38S12  XWE38S12
