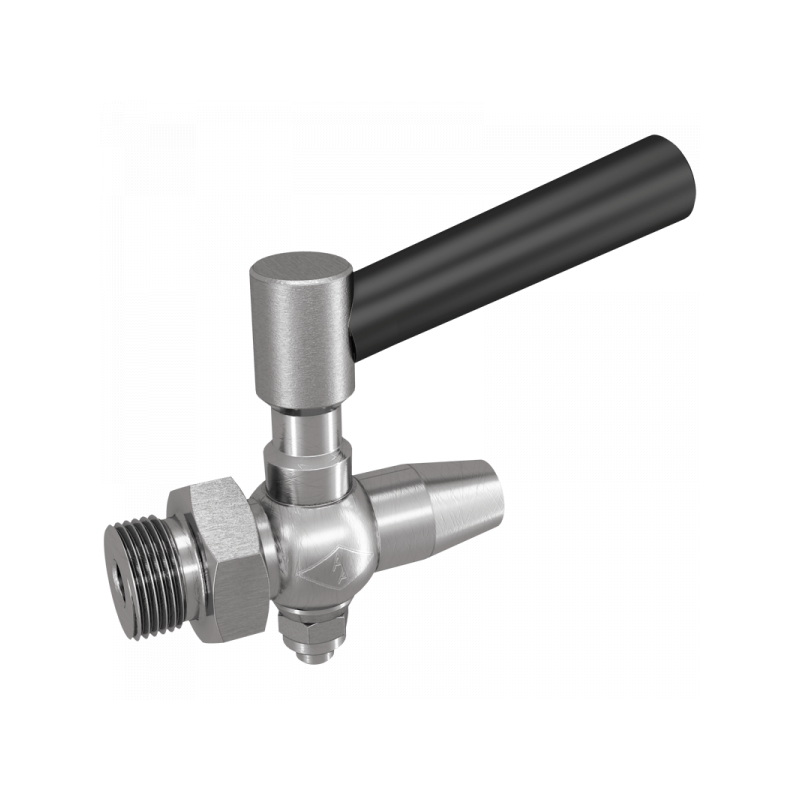

Fig. 183:

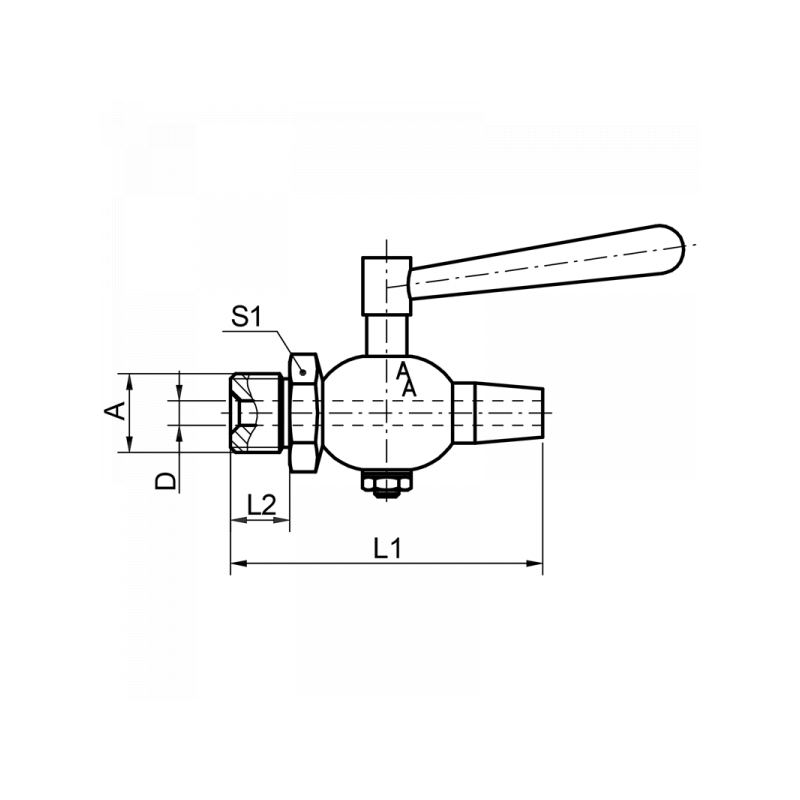

A DN PN / Bar L1 / mm L2 / mm S1 D Material Art.Nr. PDF
G1/4 4 6 -5°C / +50°C 51 10 22 2,5 1.4571 10183023
G3/8 6 6 -5°C / +50°C 58 10 22 4 1.4571 10183033
G1/2 8 6 -5°C / +50°C 70 14 27 5 1.4571 10183043
G1/2 8 6 -5°C / +50°C 70 14 27 5 1.4571 E10183043
