Cutting ring fittings

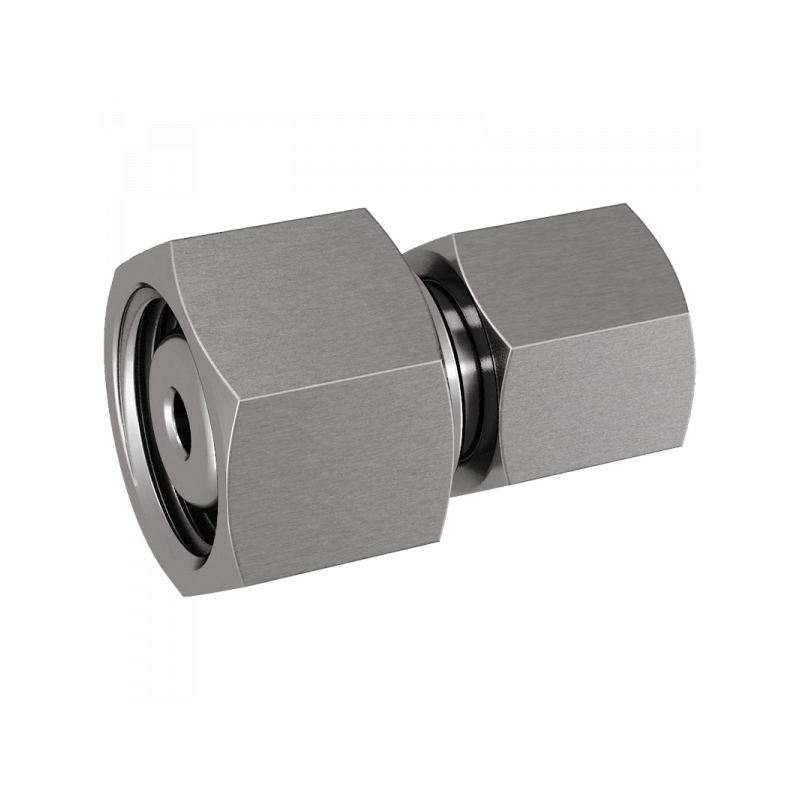

Couplings with sealing head

A	B	PN / Bar	L1 / mm	S1	S2	Material	Art.Nr.
08	06	630	33	19	17	1.4571	GRD0806S
10	06	630	33	22	17	1.4571	GRD1006S
10	08	630	33	22	19	1.4571	GRD1008S
12	06	630	36	24	17	1.4571	GRD1206S
12	08	630	36	24	19	1.4571	GRD1208S
12	10	630	36	24	22	1.4571	GRD1210S
14	10	630	41	27	22	1.4571	GRD1410S
14	12	630	42	27	24	1.4571	GRD1412S
16	10	400	39	30	22	1.4571	GRD1610S
16	12	400	39	30	24	1.4571	GRD1612S
16	14	400	43	30	27	1.4571	GRD1614S
20	12	400	44	36	24	1.4571	GRD2012S
20	14	400	49	36	27	1.4571	GRD2014S
20	16	400	44	36	30	1.4571	GRD2016S
25	14	400	52	46	27	1.4571	GRD2514S
25	16	400	46	46	30	1.4571	GRD2516S
25	20	400	46	46	36	1.4571	GRD2520S
30	20	400	52	50	36	1.4571	GRD3020S
30	25	400	52	50	46	1.4571	GRD3025S
38	25	250	52	60	46	1.4571	GRD3825S
38	30	250	52	60	50	1.4571	GRD3830S
