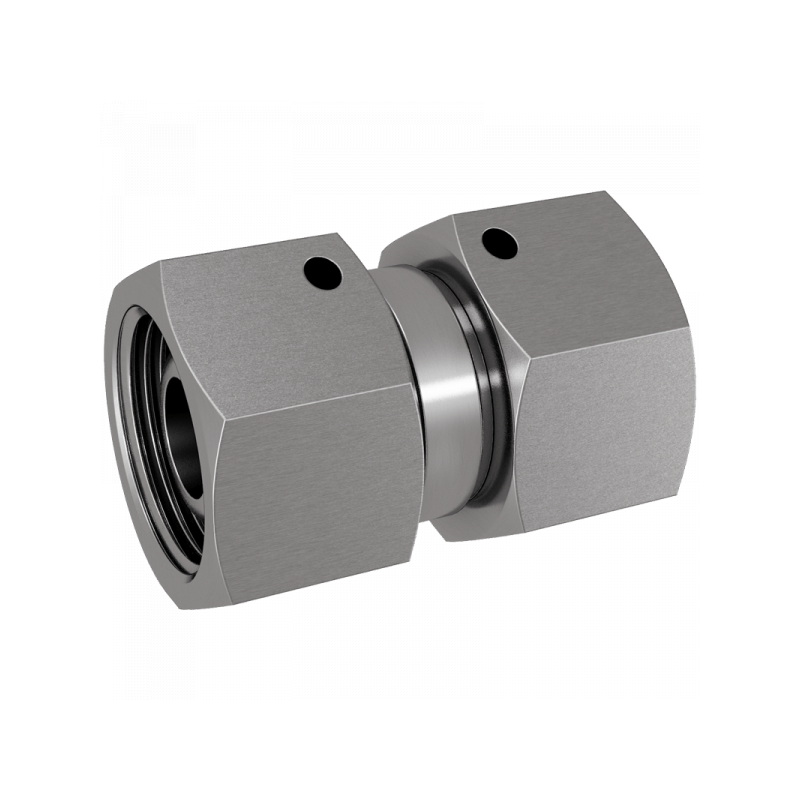

GD-L/S:

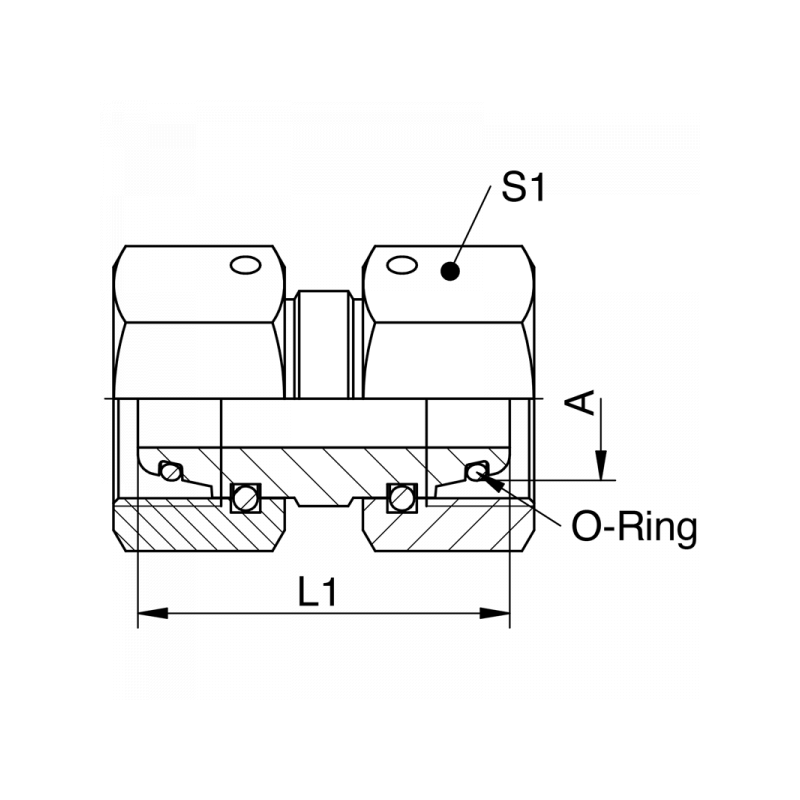

A PN / Bar L1 / mm S1 Material Art.Nr. PDF
06 315 32 14 1.4571 GD06L
08 315 32 17 1.4571 GD08L
10 315 33 19 1.4571 GD10L
12 315 33 22 1.4571 GD12L
15 315 38 27 1.4571 GD15L
18 315 36 32 1.4571 GD18L
22 160 42 36 1.4571 GD22L
28 160 46 41 1.4571 GD28L
35 160 48 50 1.4571 GD35L
42 160 52 60 1.4571 GD42L
06 630 32 17 1.4571 GD06S
08 630 33 19 1.4571 GD08S
10 630 33 22 1.4571 GD10S
12 630 36 24 1.4571 GD12S
14 630 39 27 1.4571 GD14S
16 400 39 30 1.4571 GD16S
20 400 44 36 1.4571 GD20S
25 400 46 46 1.4571 GD25S
30 400 52 50 1.4571 GD30S
38 250 52 60 1.4571 GD38S
